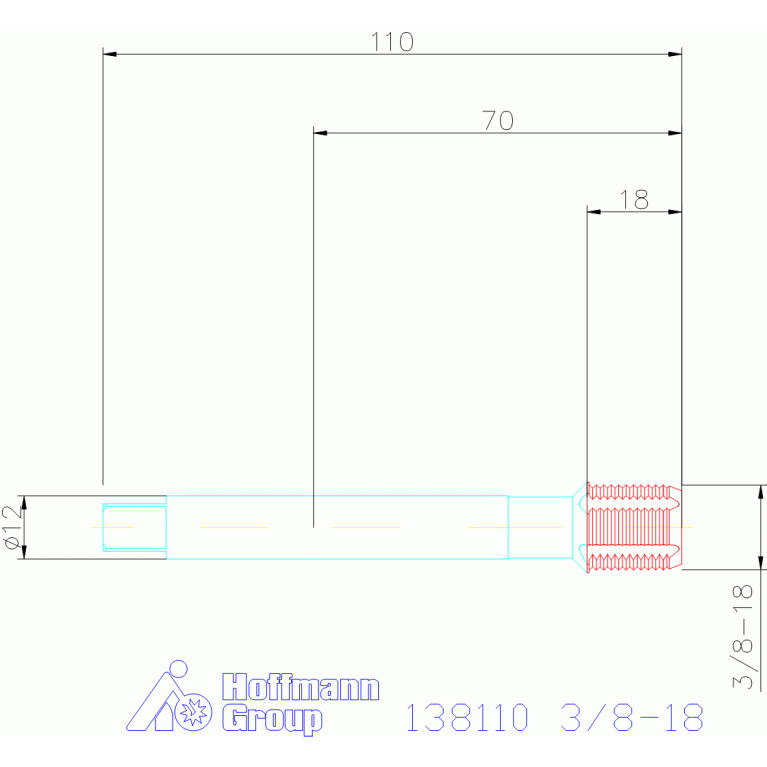

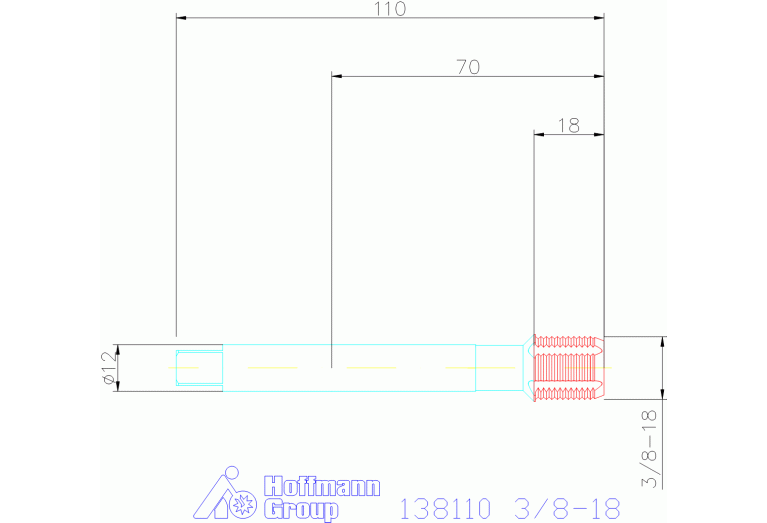

Главная Каталог продукции Toolunited 13 301-00 - Thread cutting tap, forming tap, cutting die unspecified 138110 3/8-18

138110 3/8-18

138110 3/8-18 138110 3/8-18 138110 3/8-18

138110 3/8-18

Hoffmann Group
Артикул: 138110 3/8-18
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01202105
FamilyProducts

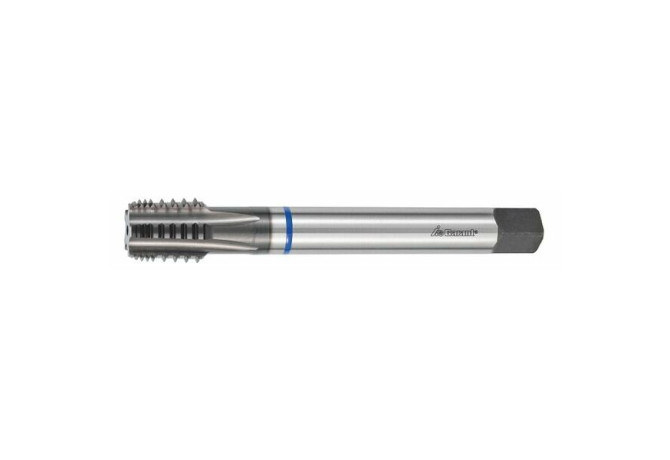

GARANT Machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202105
LS Shank length
77 mm
Name Identifying order number
138110 3/8-18
NOF Flute count
5
OAL Overall length
110 mm
PLCD Gate diameter
13.92 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
2.82 mm
TD Thread diameter
16.092 mm
TDFR Thread diameter nominal fraction
3/8 in
TG Taper ratio
1:16
THFT Thread form type
NPT
THL Thread cutting part length
18 mm
TPI Threads per inch
18 1/in
Working process
BG - Tapping
WT Weight of item
0.118 kg
