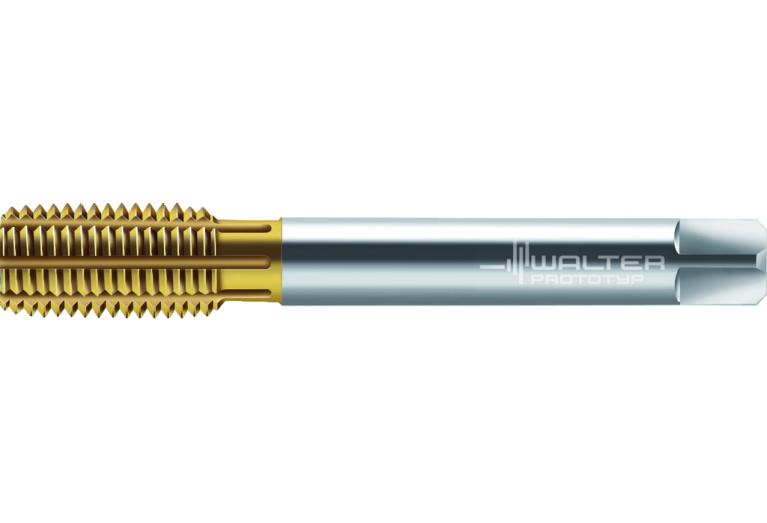

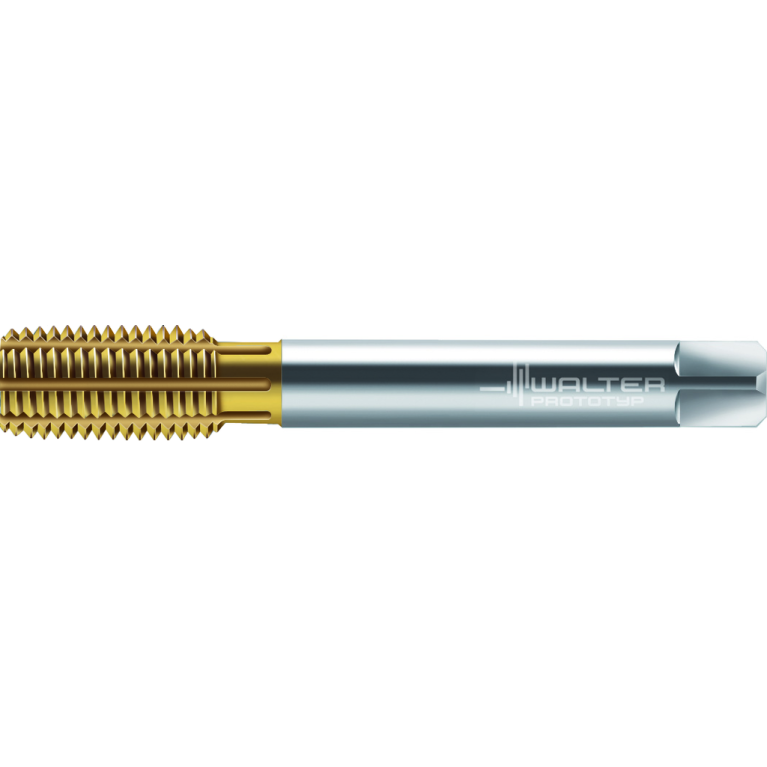

Главная Каталог продукции СЗЦПК инструмент 13 301-03 - Thread forming tap with offset shank DP2266705-UNC7/16

DP2266705-UNC7/16

DP2266705-UNC7/16 DP2266705-UNC7/16 DP2266705-UNC7/16

DP2266705-UNC7/16

Walter
Артикул: 5835670
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802105
FamilyProducts
HSS-E machine thread formers
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5835670
Interface codes
J6 / J61
ISO
ZYL21F8000h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F8000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number
DP2266705-UNC7/16
NOF Flute count
5
OAL Overall length
100 mm
PLCD Gate diameter
10.32 mm
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
6.5 mm
TCTR Thread tolerance class
2BX
TD Thread diameter
11.1125 mm
TDFR Thread diameter nominal fraction
7/16 in
THFT Thread form type
UNC
THL Thread cutting part length
20 mm
THOD Thread designation
UNC7/16-14-2BX
TPI Threads per inch
14 1/in
TTPID Tap type identifier
3 - serial tap
Working process
EGI - Threading, internal
WT Weight of item
0.047 kg
