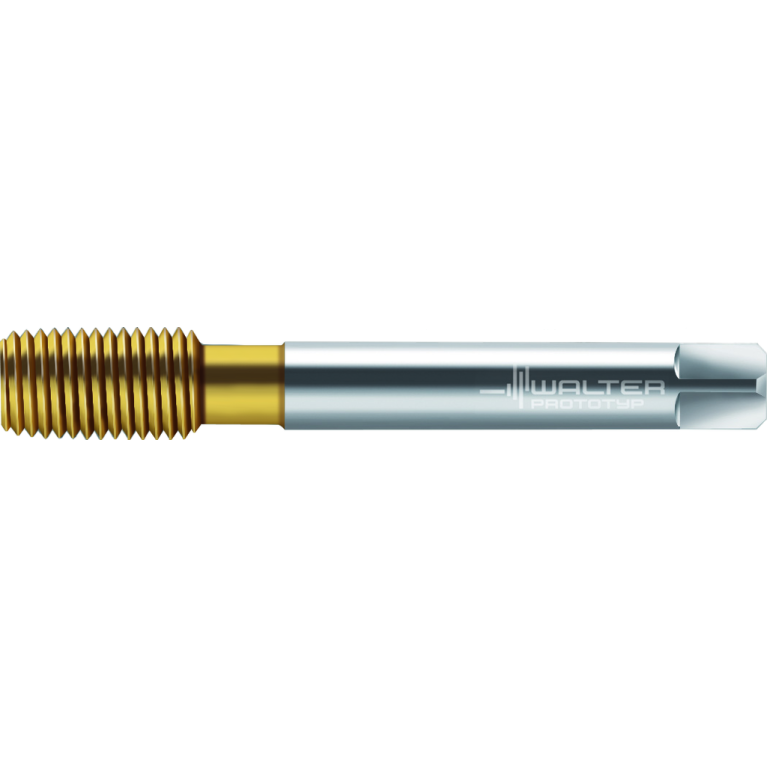

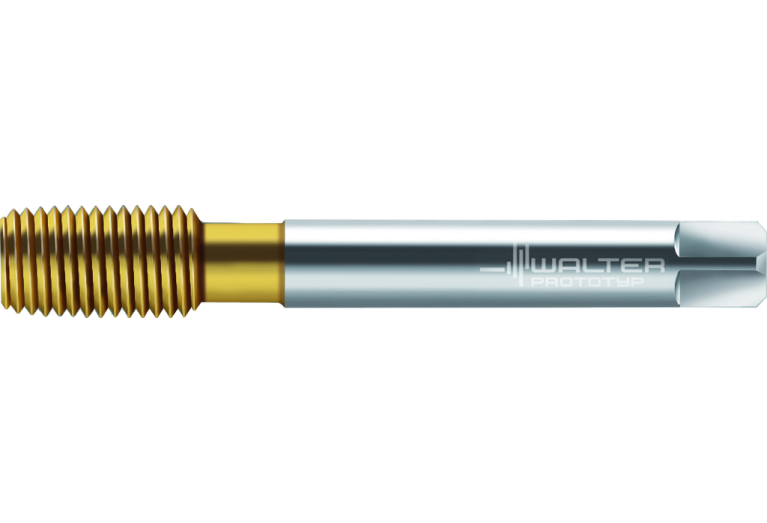

Главная Каталог продукции СЗЦПК инструмент 13 301-03 - Thread forming tap with offset shank DP2066105-M18

DP2066105-M18

DP2066105-M18 DP2066105-M18 DP2066105-M18

DP2066105-M18

Walter
Артикул: 5665369
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01402105
FamilyProducts
HSS-E machine thread formers
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5665369
Interface codes
J6 / J61
ISO
ZYL21G1400h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1400h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105

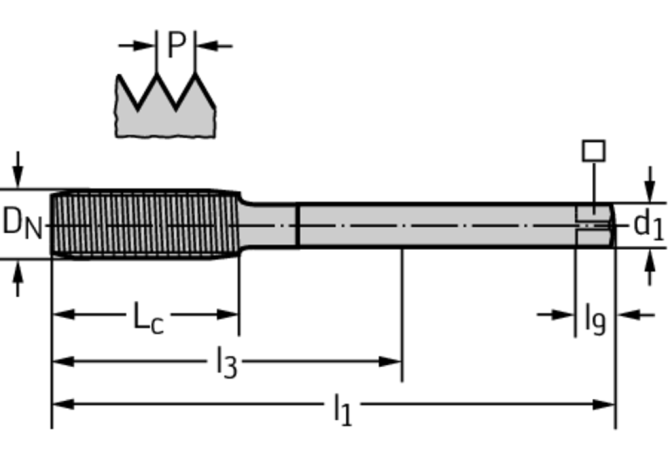

Name Identifying order number
DP2066105-M18
NOF Flute count
7
OAL Overall length
125 mm
PLCD Gate diameter
16.93 mm
STDNO Standard
DIN 2174
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
8.75 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
18 mm
THFT Thread form type
M
THL Thread cutting part length
30 mm
THOD Thread designation
M18x2.5-6HX
TP Thread pitch
2.5 mm
TTPID Tap type identifier
3 - serial tap
Working process
EGI - Threading, internal
WT Weight of item
0.17 kg
