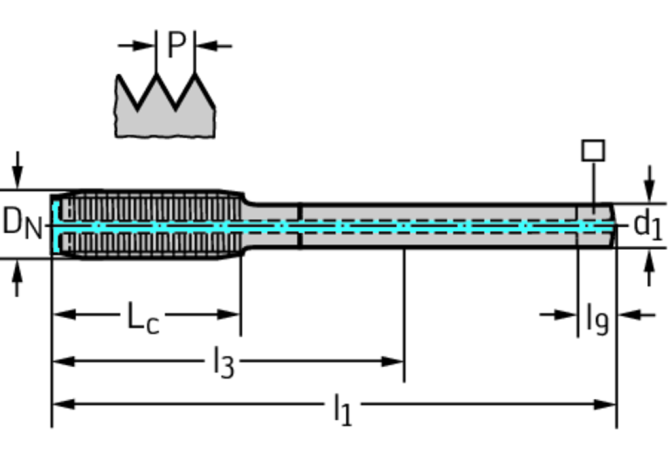

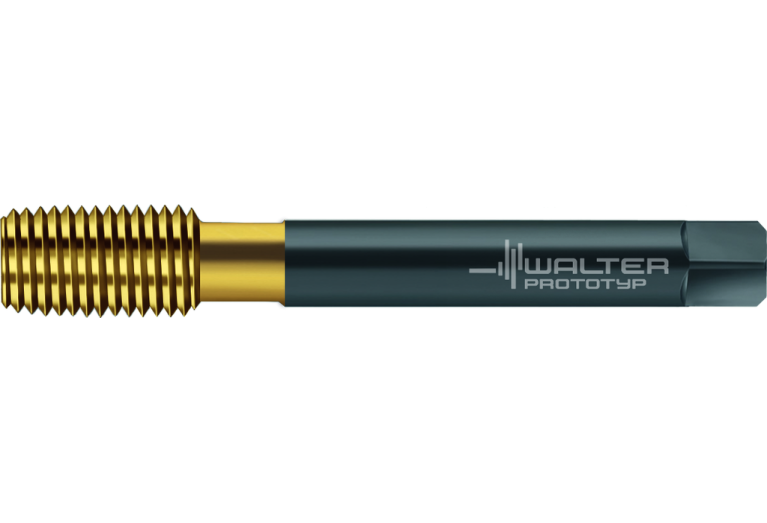

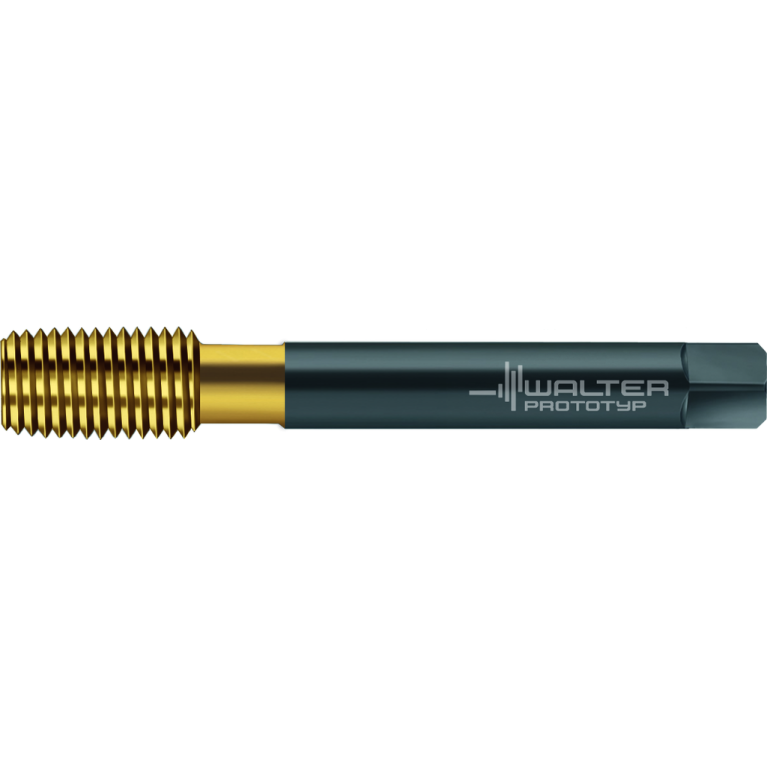

Главная Каталог продукции СЗЦПК инструмент 13 301-03 - Thread forming tap with offset shank ACP2266745-UNC1/2

ACP2266745-UNC1/2

ACP2266745-UNC1/2 ACP2266745-UNC1/2 ACP2266745-UNC1/2

ACP2266745-UNC1/2

Walter
Артикул: 5934730
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03672135
FamilyProducts
HSS-E machine thread formers
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5934730
Interface codes
J6 / J61
ISO
ZYL21R3670h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0367
LOC-03 DCONMS Diameter
9.3218 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R3670h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03672135
Name Identifying order number
ACP2266745-UNC1/2
NOF Flute count
6
OAL Overall length
110 mm
PLCD Gate diameter
11.92 mm
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
6.99 mm
TCTR Thread tolerance class
2B
TD Thread diameter
12.7 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
UNC
THL Thread cutting part length
23 mm
THOD Thread designation
UNC1/2-13-2B
TPI Threads per inch
13 1/in
TTPID Tap type identifier
3 - serial tap
Working process
EGI - Threading, internal
WT Weight of item
0.06 kg
