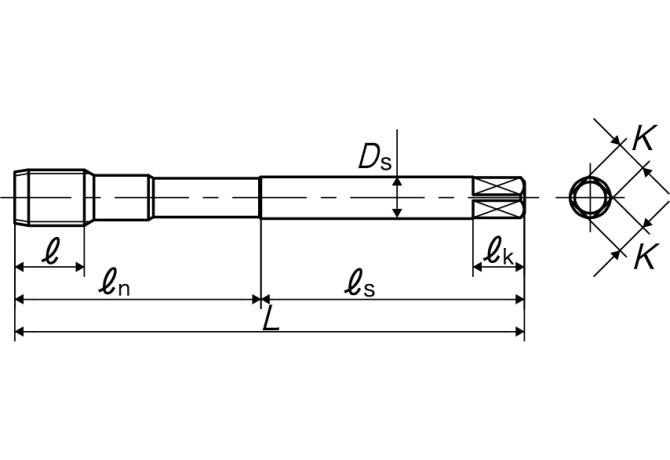

Главная Каталог продукции Toolunited 13 301-03 - Thread forming tap with offset shank 5110103126

5110103126

5110103126 5110103126

5110103126

Yamawa
Артикул: 5110103126
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL02552125
DRVS Drive size
8.179 mm
FamilyProducts
MHRZ H10 9/16-12UNC 4P coated tap
FHH Flute helix hand
N - Hand of helix neutral
GRDPRIO Standard designation of the grade main application
HSS-Co
HAND Cutting direction
R - Right
ID Identifying order number
5110103126
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0255
LOC-03 DCONMS Diameter
6.477 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02552125
LS Shank length
56.007 mm
Materials
P,M,N,H
NOF Flute count
8
OAL Overall length
110.007 mm
OVERHANG LENGTH Overhang length
58.42 mm
PLCD Gate diameter
13.106 mm
PLG Plug style
D - Kappa r 8°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
8.458 mm
TCTR Thread tolerance class
H10
TDFR Thread diameter nominal fraction
9/16 in
TDIN Thread diameter nominal inch
0.5625 in
THFT Thread form type
UNC
THL Thread cutting part length
18.009 mm
THOD Thread designation
UNC9/16-12-H10
TP Thread pitch
2.116 mm
TPI Threads per inch
12 1/in
TTPID Tap type identifier
4 - Forming tap
Working process
GFD - Thread forming, through hole
WT Weight of item
0.083 kg
