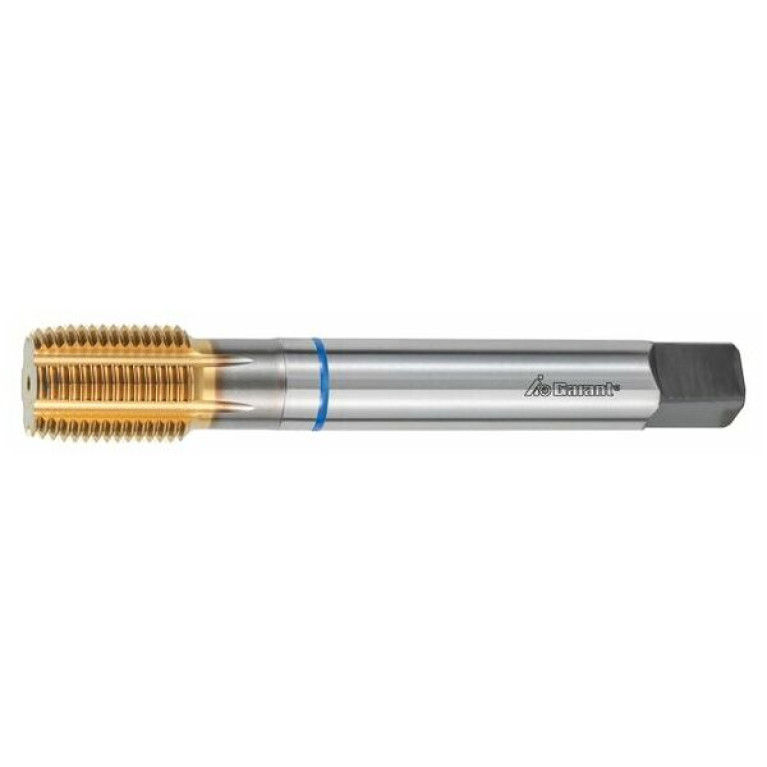

Главная Каталог продукции Toolunited 13 301-03 - Thread forming tap with offset shank 139400 G1/2

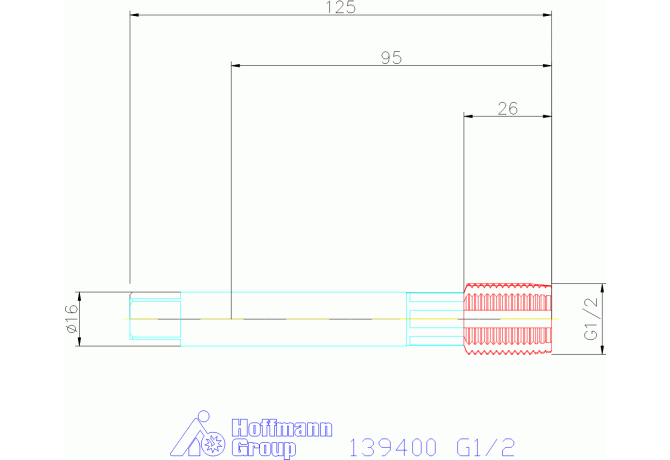

139400 G1/2

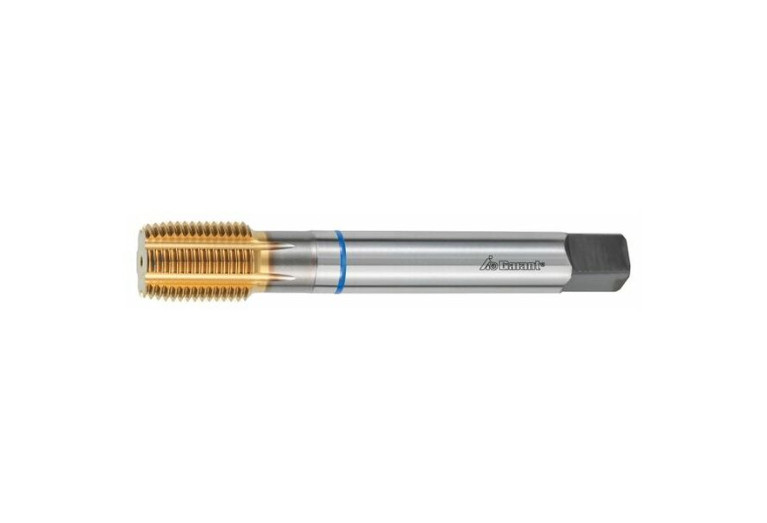

139400 G1/2 139400 G1/2 139400 G1/2

139400 G1/2

Hoffmann Group
Артикул: 139400 G1/2
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01602105
FamilyProducts
GARANT Fluteless machine tap with oil grooves HSSE-PM
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602105
LS Shank length
82 mm
Name Identifying order number
139400 G1/2
NOF Flute count
6
OAL Overall length
125 mm
PLCD Gate diameter
19.7 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
6.47 mm
TCTR Thread tolerance class
ISO5969
TD Thread diameter
20.955 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
G
THL Thread cutting part length
26 mm
THOD Thread designation
G1/2-14-ISO5969
TPI Threads per inch
14 1/in
TTPID Tap type identifier
4 - Forming tap
Working process
BG - Tapping
WT Weight of item
0.38 kg
