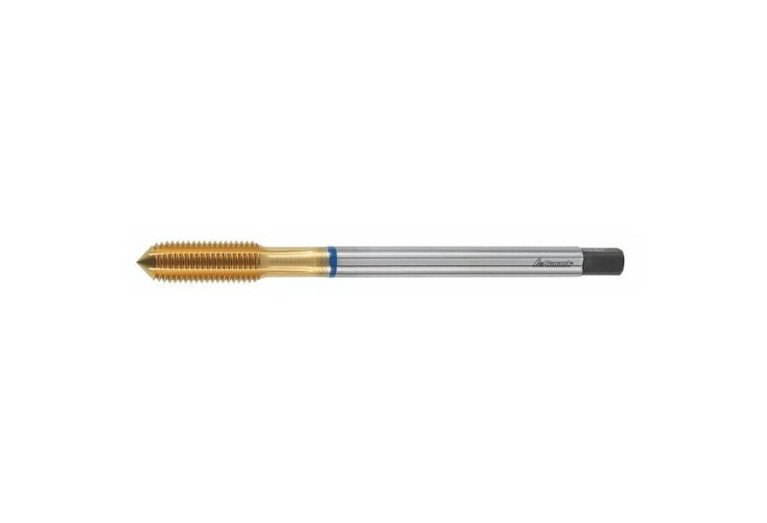

Главная Каталог продукции Toolunited 13 301-03 - Thread forming tap with offset shank 139260 10X1

139260 10X1

139260 10X1 139260 10X1 139260 10X1

139260 10X1

Hoffmann Group
Артикул: 139260 10X1
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00702105
FamilyProducts
GARANT Fluteless machine tap with oil grooves HSSE-PM
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
57 mm
Name Identifying order number
139260 10X1
NOF Flute count
6

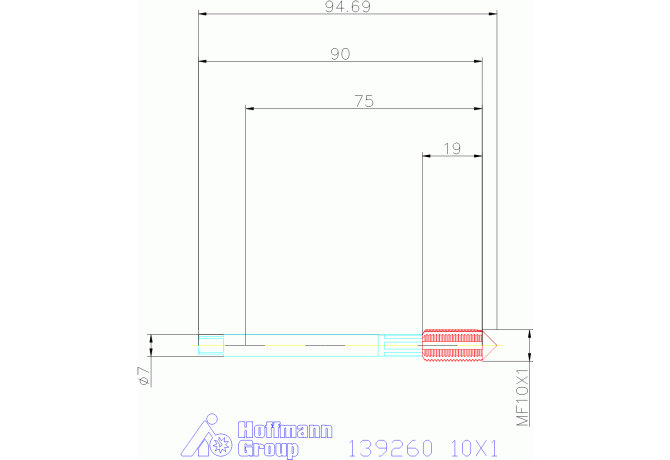

OAL Overall length
94.685 mm
PLCD Gate diameter
9.37 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
7.195 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
10 mm
THFT Thread form type
MF
THL Thread cutting part length
19 mm
THOD Thread designation
MF10x1-6HX
TP Thread pitch
1 mm
TTPID Tap type identifier
4 - Forming tap
Working process
BG - Tapping
WT Weight of item
0.063 kg
