139178 M16
139178 M16
Артикул:
139178 M16
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01202105
FamilyProducts

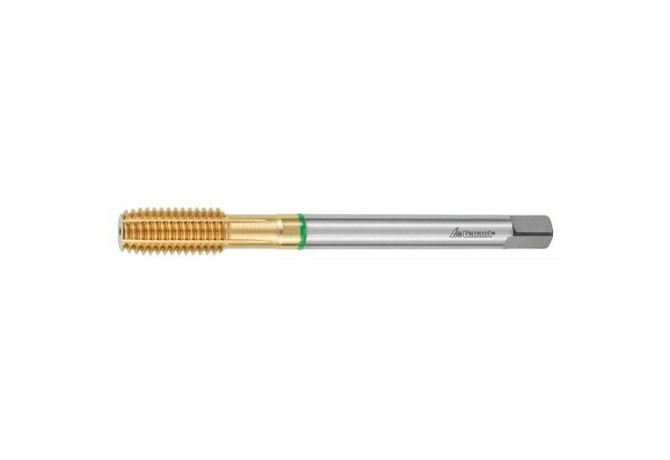

GARANT Fluteless machine tap with oil grooves HSSE-PM Form C
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202105
LS Shank length
81 mm
Name Identifying order number
139178 M16
NOF Flute count
6
OAL Overall length
110 mm
PLCD Gate diameter
14.8 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
5.79 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
16 mm
THFT Thread form type
M
THL Thread cutting part length
29 mm
THOD Thread designation
M16x2-6HX
TP Thread pitch
2 mm
TTPID Tap type identifier
4 - Forming tap
Working process
BG - Tapping
WT Weight of item
0.181 kg
