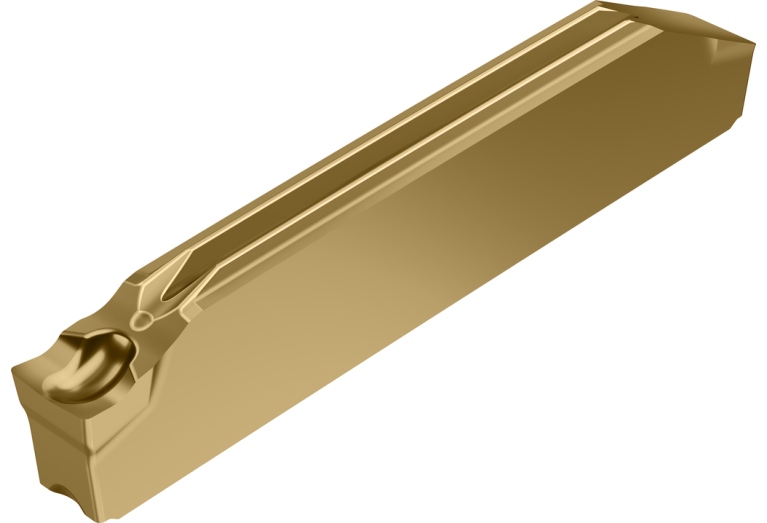

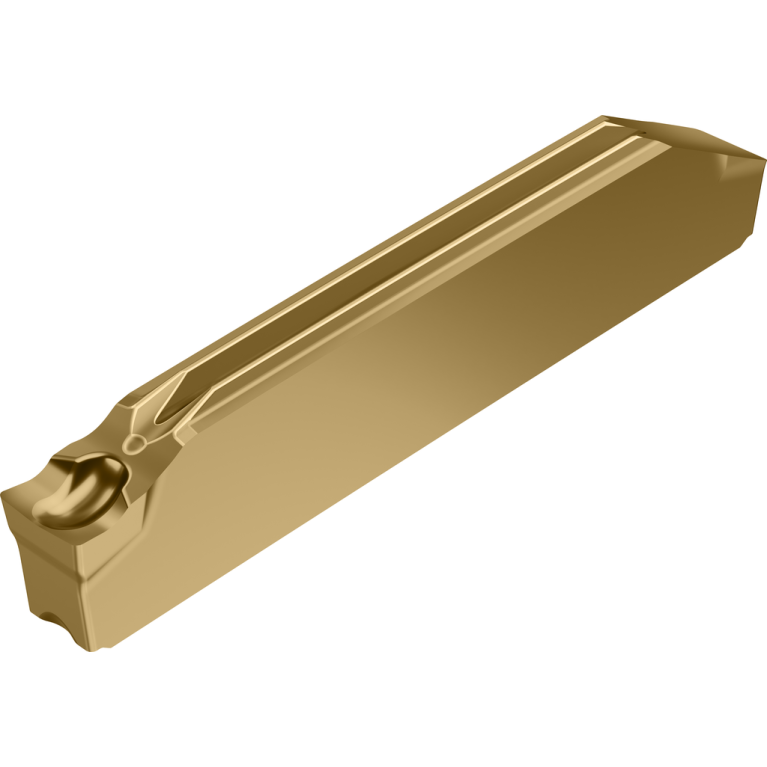

GD26-4F400N02-CF5 WSM33G

Артикул: 8542211

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CF5

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN/TiSiN

COMPC Company code

W - Walter

CW Cutting width

4 mm

Delivery state valid from

12/1/2024

FamilyProducts

Grooving and parting off – cutting inserts GD

GRDMFG Grade manufacturers designation

WSM33G

ID Technical product number

8542211

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

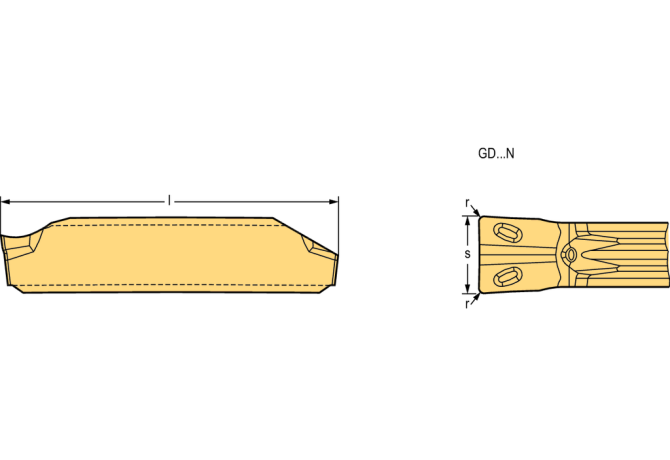

INSL Insert length

26.5 mm

Interface codes

J6 / J61

ISO

WR$$GD2640007$$FX$$

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

LOC-03 ISO

WR$$GD2640007$$FX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

GD26-4F400N02-CF5 WSM33G

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.2 mm

RER Corner radius right hand

0.2 mm

S Insert thickness

4.47 mm

S1 Insert thickness total

5.88 mm

TCE Tipped cutting edge code

W1 Insert width

3.5 mm

Working process

DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.007 kg
