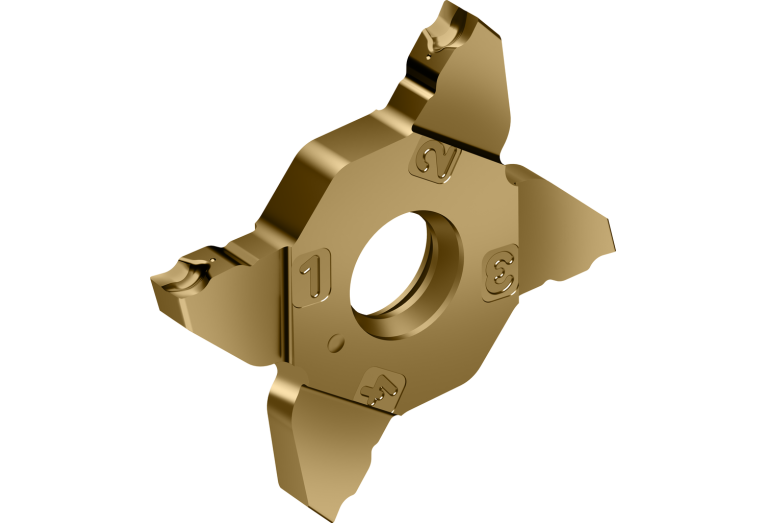

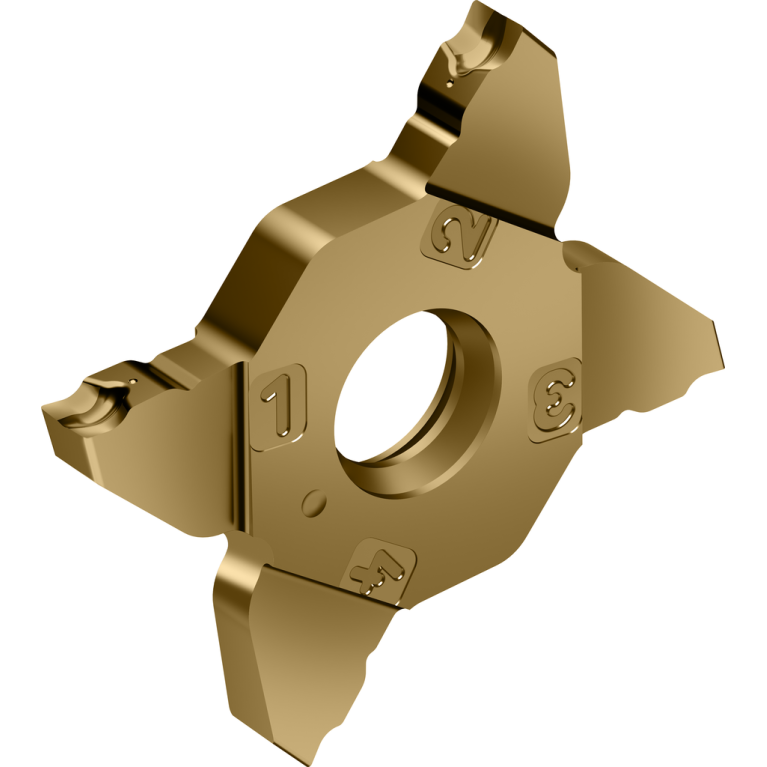

MX22-2E104N01-CF5 WSM23G

Артикул: 8567867

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CF5

COMPC Company code

W - Walter

CW Cutting width

1.04 mm

D1 Fixing hole diameter

6 mm

Delivery state valid from

6/1/2024

DIN

W-MX2220003$BEX$$

FamilyProducts

Grooving and parting off – cutting inserts MX

GRDMFG Grade manufacturers designation

WSM23G

ID Technical product number

8567867

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

INSL Insert length

22 mm

Interface codes

J6 / J61

ISO

WR$$MX2220003$BEX$$

ISYC Subclass

202-07 - Insert, multiple cutting edges for grooving and parting

LOC-03 ISO

WR$$MX2220003$BEX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-MX2220003$BEX$$

Name Identifying order number

MX22-2E104N01-CF5 WSM23G

NOF Flute count

PDPT Profile depth insert

2 mm

PFS Profile form

REL Corner radius left hand

0.1 mm

RER Corner radius right hand

0.1 mm

S Insert thickness

3.35 mm

S1 Insert thickness total

3.35 mm

TCE Tipped cutting edge code

W1 Insert width

0.7 mm

Working process

DEA - Outer diameter grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.012 kg
