Главная Каталог продукции Toolunited 13 202-07 - Insert, multiple cutting edges for grooving and parting GBA43L250-125R PR2015

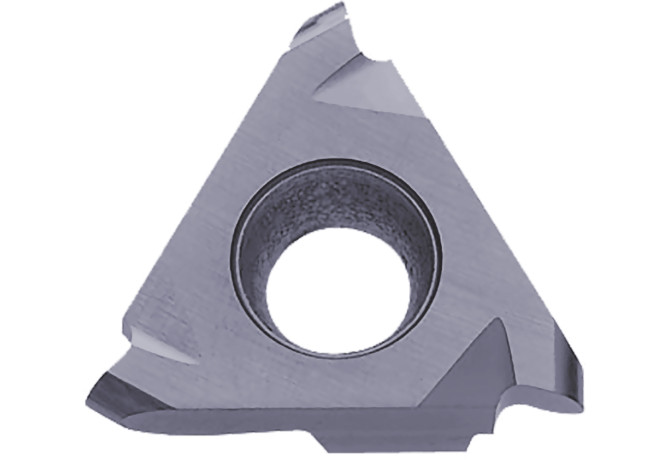

GBA43L250-125R PR2015

Артикул: TLX00166

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANL Clearance angle flank left hand

0 Degree

ANR Clearance angle flank right hand

4 Degree

CECC Cutting edge condition code

E - Rounded

COATN Coating

MEGACOAT NANO EX

COMPC Company code

KYO - Kyocera

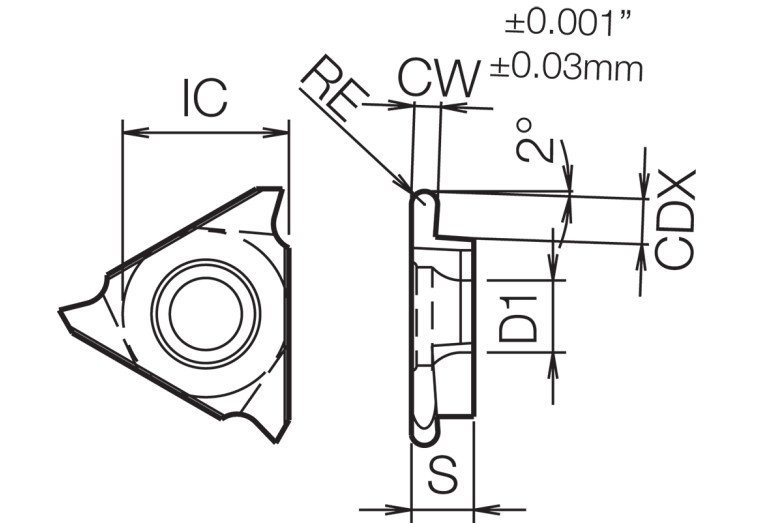

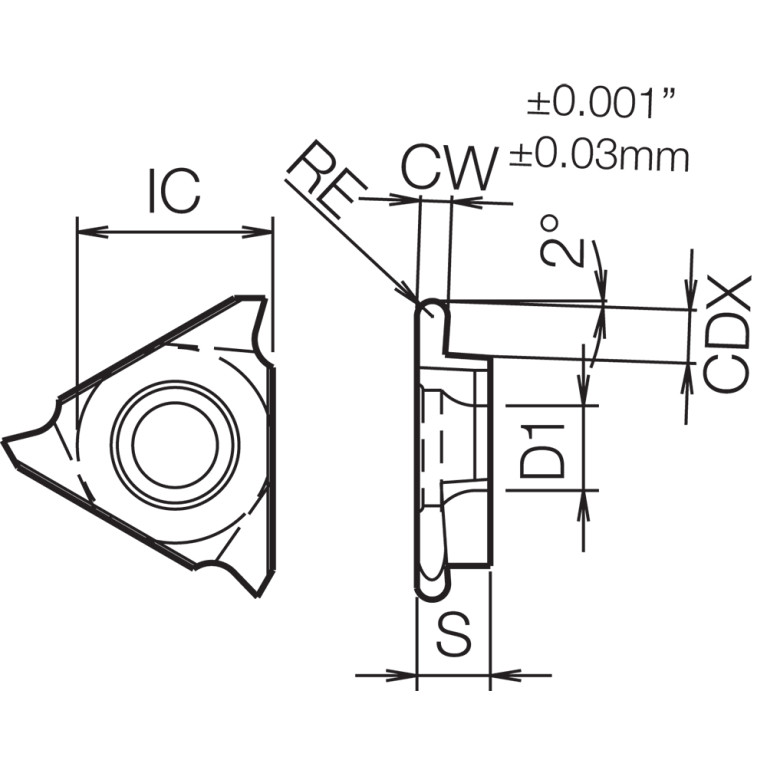

CRE Spot radius

1.25 mm

CW Cutting width

2.5 mm

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2024

DIN

KYO-GBA43L

EPSR Insert included angle

90 Degree

FamilyProducts

Inserts for Grooving GBA

GAN Insert rake angle

16 Degree

GRDMFG Grade manufacturers designation

PR2015

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

12.7 mm

ID Technical product number

TLX00166

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISYC Subclass

202-07 - Insert, multiple cutting edges for grooving and parting

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KYO-GBA43L

Materials

P,M,K

Name Identifying order number

GBA43L250-125R PR2015

NOF Flute count

W1 Insert width

4.76 mm

Working process

No working processes available

WT Weight of item

0.009 kg
