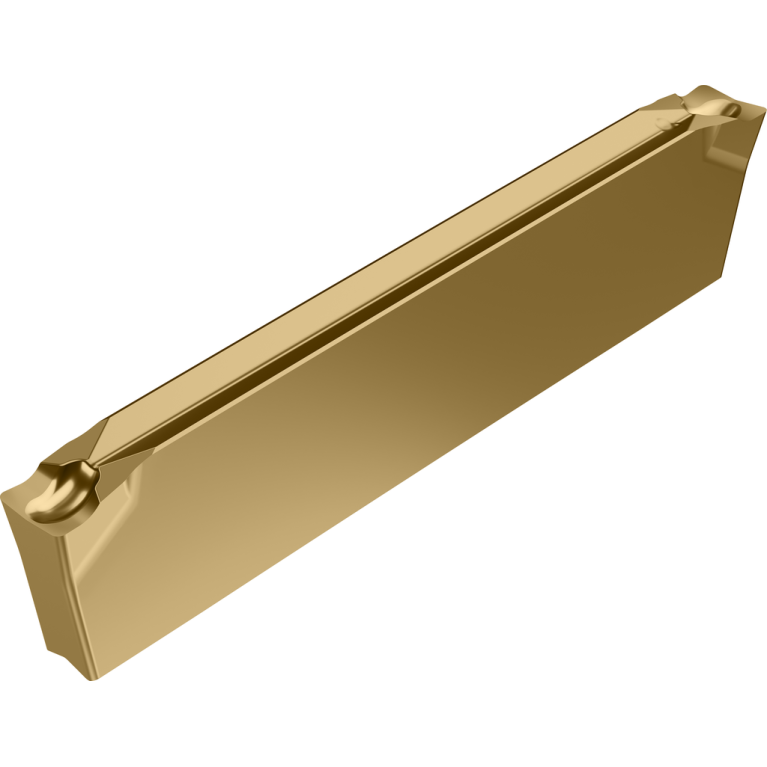

Главная Каталог продукции СЗЦПК инструмент 13 202-03 - Insert, two cutting edges for grooving and parting, self clamping GX34-3E400N04-CF5 WSM33G

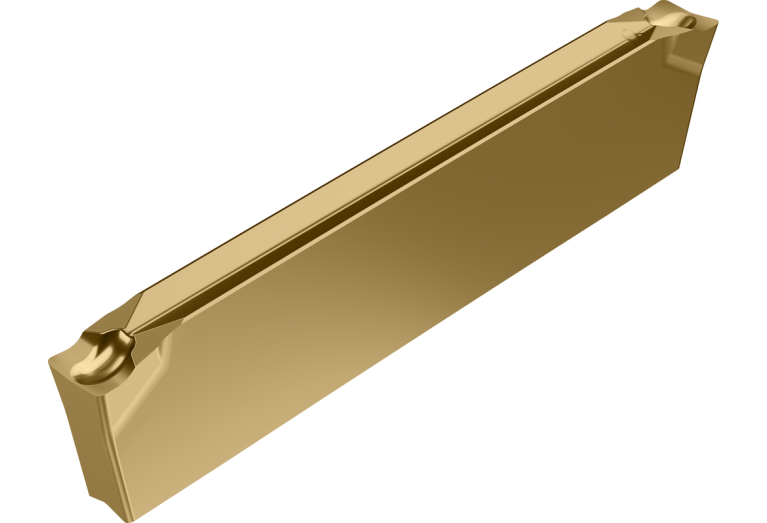

GX34-3E400N04-CF5 WSM33G

Артикул: 8692017

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CF5

COATN Coating / Покрытие

TiAlN/TiSiN

COMPC Company code

W - Walter

CW Cutting width

4 mm

Delivery state valid from

12/1/2024

FamilyProducts

Grooving and parting off – cutting inserts GX

GRDMFG Grade manufacturers designation

WSM33G

ID Technical product number

8692017

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

34 mm

Interface codes

J6 / J61

ISO

WR$$GX3430007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX3430007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

GX34-3E400N04-CF5 WSM33G

NOF Flute count

PDPT Profile depth insert

32 mm

PFS Profile form

REL Corner radius left hand

0.4 mm

RER Corner radius right hand

0.4 mm

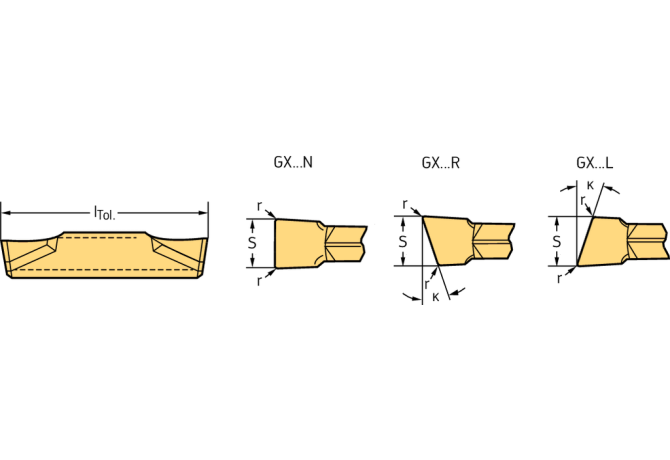

S Insert thickness

6.98 mm

S1 Insert thickness total

8.07 mm

TCE Tipped cutting edge code

W1 Insert width

3.5 mm

Working process

DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.012 kg

Главный задний угол (AN) / Clearance angle major (AN)

10 Degree
