Главная Каталог продукции СЗЦПК инструмент 13 202-03 - Insert, two cutting edges for grooving and parting, self clamping GX34-2E300R6-CF5 WSM33G

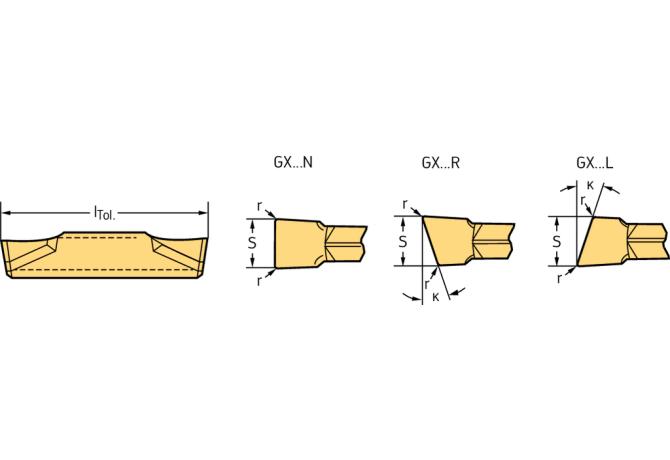

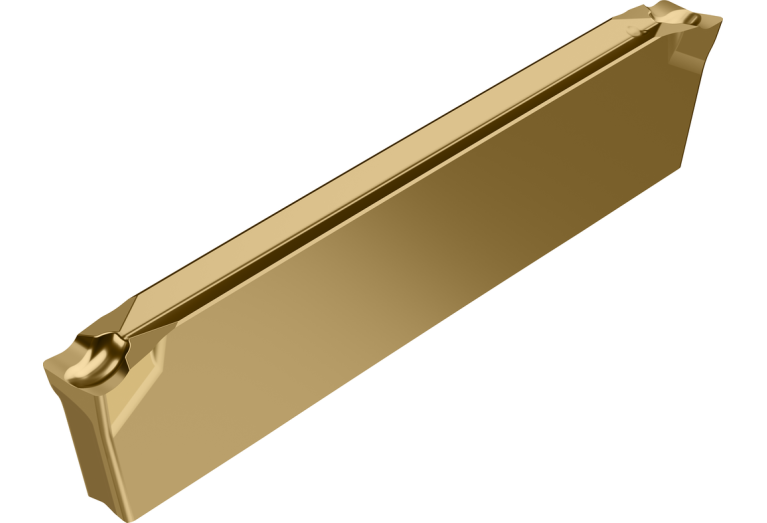

GX34-2E300R6-CF5 WSM33G

Артикул: 8564833

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CF5

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN/TiSiN

COMPC Company code

W - Walter

CW Cutting width

3 mm

Delivery state valid from

6/1/2024

DIN

W-GX3420007$$EX$$

FamilyProducts

Grooving and parting off – cutting inserts GX

GRDMFG Grade manufacturers designation

WSM33G

ID Technical product number

8564833

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

INSL Insert length

34 mm

Interface codes

J6 / J61

ISO

WR$$GX3420007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX3420007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX3420007$$EX$$

Materials

P,M,S

Name Identifying order number

GX34-2E300R6-CF5 WSM33G

NOF Flute count

PDPT Profile depth insert

32 mm

PFS Profile form

PSIRR Cutting edge angle major right hand

6 Degree

REL Corner radius left hand

0.3 mm

RER Corner radius right hand

0.3 mm

S Insert thickness

6.83 mm

S1 Insert thickness total

7.76 mm

TCE Tipped cutting edge code

W1 Insert width

2.3 mm

Working process

DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.016 kg

Главный задний угол (AN) / Clearance angle major (AN)

10 Degree
