Главная Каталог продукции СЗЦПК инструмент 13 202-03 - Insert, two cutting edges for grooving and parting, self clamping GD26-6E600N30-RD4 WSM33G

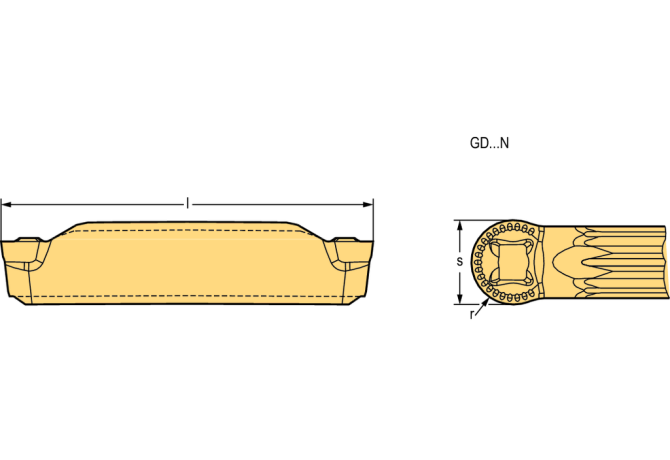

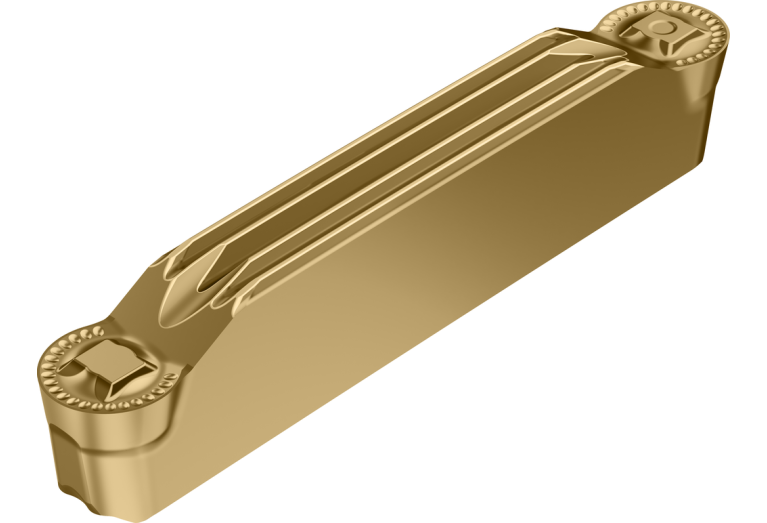

GD26-6E600N30-RD4 WSM33G

Артикул: 8542188

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RD4

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN/TiSiN

COMPC Company code

W - Walter

CRE Spot radius

3 mm

CW Cutting width

6 mm

Delivery state valid from

12/1/2024

FamilyProducts

Grooving and copy turning – cutting inserts GD

GRDMFG Grade manufacturers designation

WSM33G

ID Technical product number

8542188

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

26.5 mm

Interface codes

J6 / J61

ISO

WR$$GD2660007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GD2660007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

GD26-6E600N30-RD4 WSM33G

NOF Flute count

PDPT Profile depth insert

25 mm

PFS Profile form

S Insert thickness

4.48 mm

S1 Insert thickness total

5.87 mm

TCE Tipped cutting edge code

W1 Insert width

5.2 mm

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.01 kg

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
