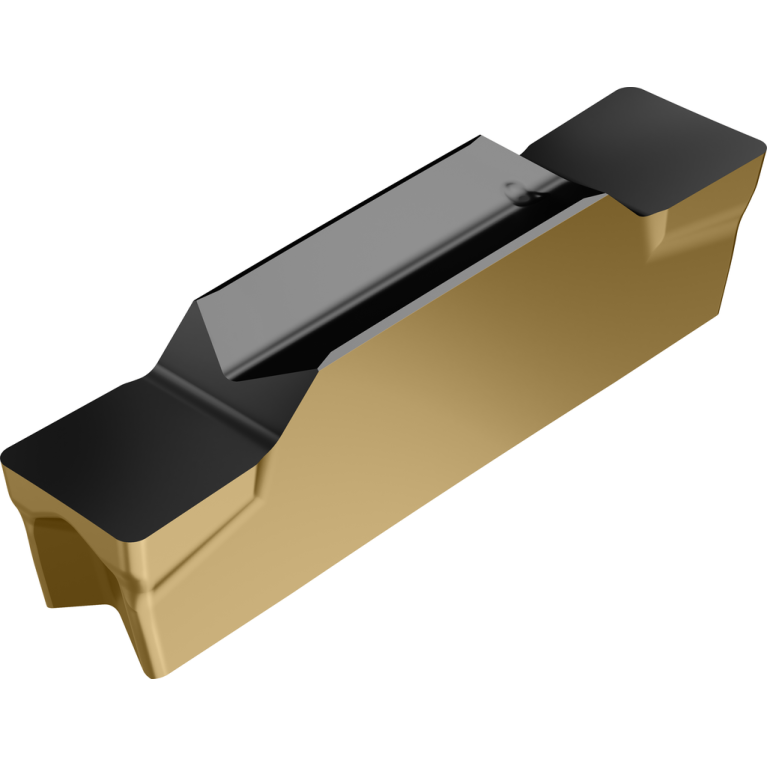

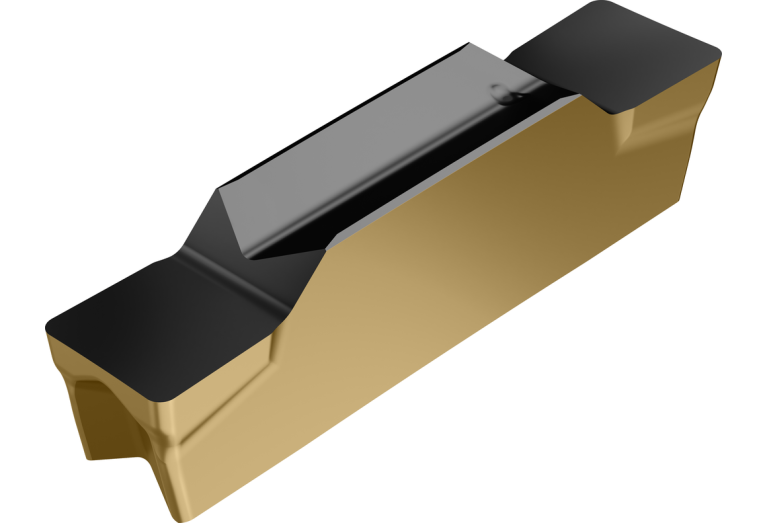

Главная Каталог продукции Toolunited 13 202-03 - Insert, two cutting edges for grooving and parting, self clamping DX18-2E200N02-UA4 WKP13G

DX18-2E200N02-UA4 WKP13G

Артикул: 8637521

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

UA4

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CW Cutting width

2 mm

Delivery state valid from

12/1/2024

FamilyProducts

Grooving and recessing – cutting inserts DX

GRDMFG Grade manufacturers designation

WKP13G

ID Technical product number

8637521

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

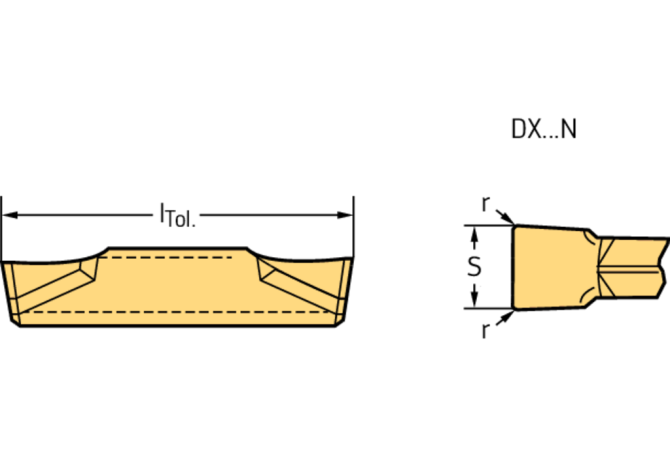

INSL Insert length

18 mm

Interface codes

J6 / J61

ISO

WR$$DX1820007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$DX1820007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

DX18-2E200N02-UA4 WKP13G

NOF Flute count

PDPT Profile depth insert

17 mm

PFS Profile form

S Insert thickness

3.68 mm

S1 Insert thickness total

4.59 mm

TCE Tipped cutting edge code

W1 Insert width

1.7 mm

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.002 kg
