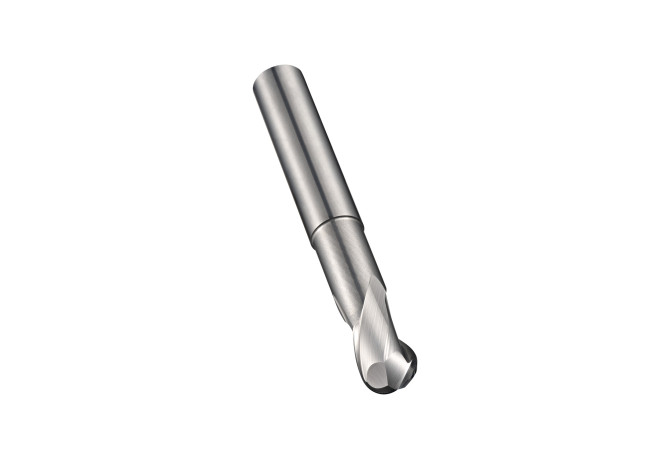

Главная Каталог продукции Toolunited 13 303-06 - Ball-nosed end mill S6292.0

S6292.0

Артикул: 8030278

В наличии

В корзину

Описание

Характеристики

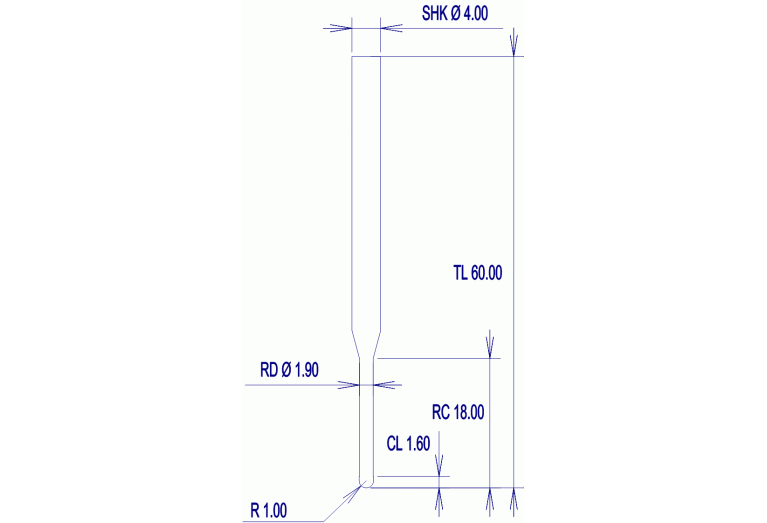

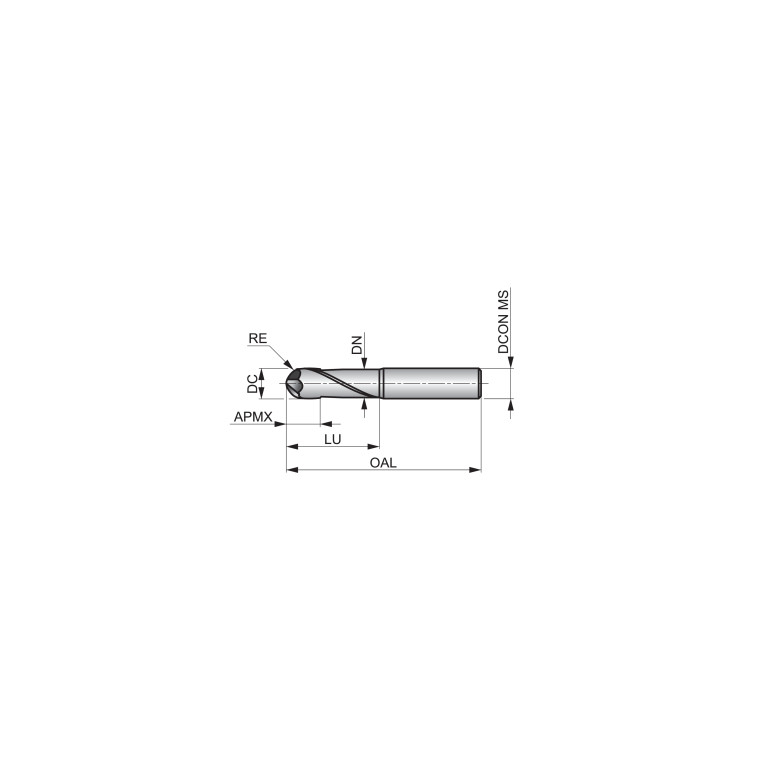

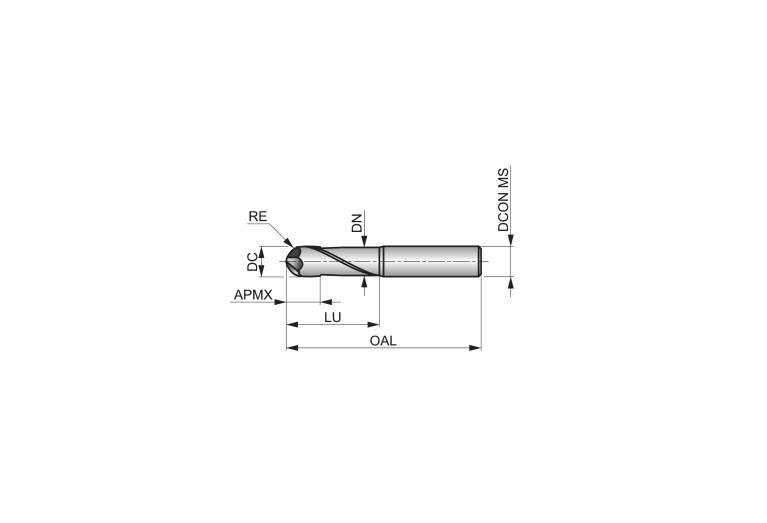

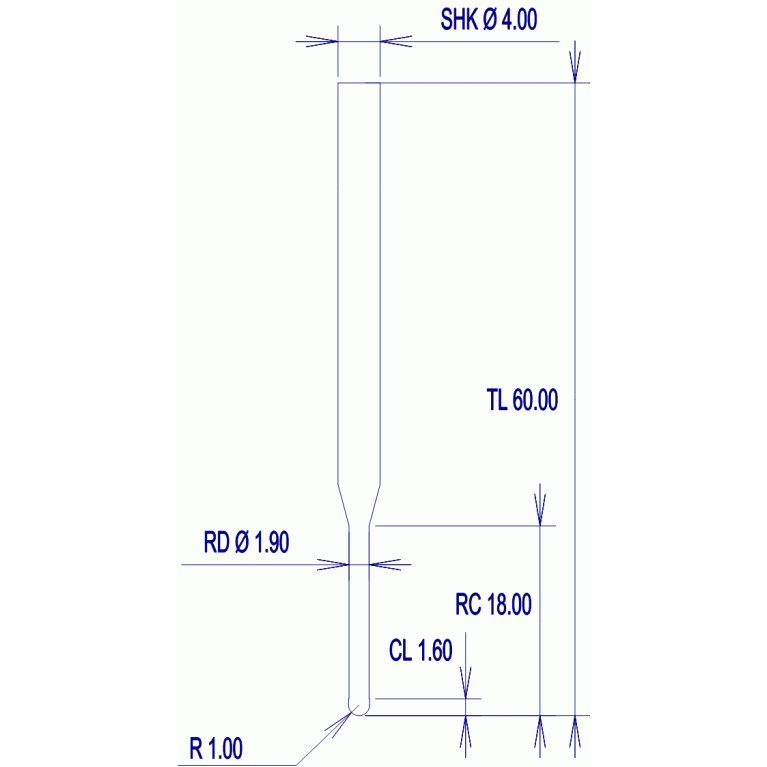

APMX Depth of cut maximum

1.6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

Delivery state valid from

6/1/2024

DIN

ZYL00400105

DN Neck diameter

1.9 mm

FamilyProducts

2-Flute Solid Carbide Ball-Nosed End Mill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

11 Degree

GRDMFG Grade manufacturers designation

Bright

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

8030278

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

18 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

Materials

Name Identifying order number

S6292.0

OAL Overall length

60 mm

STDNO Standard

DORMER

Working process

FFO - Die milling

WT Weight of item

0.016 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
