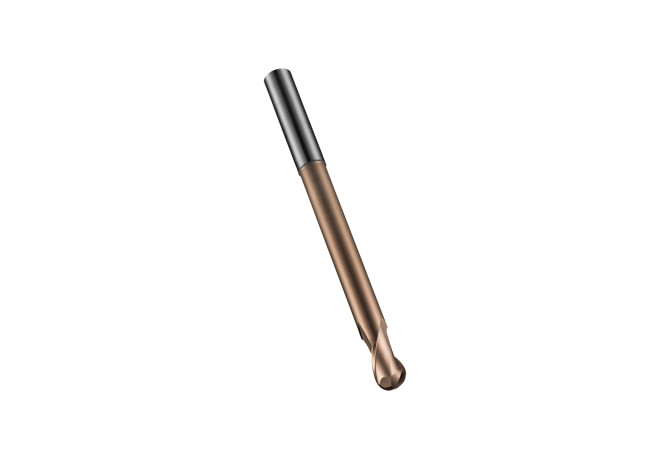

Главная Каталог продукции Toolunited 13 303-06 - Ball-nosed end mill S2332.0XD4

S2332.0XD4

Артикул: 6706554

В наличии

В корзину

Описание

Характеристики

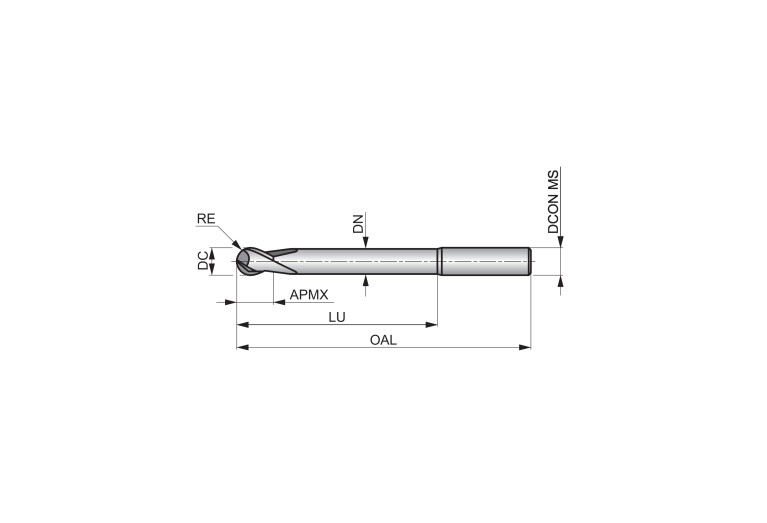

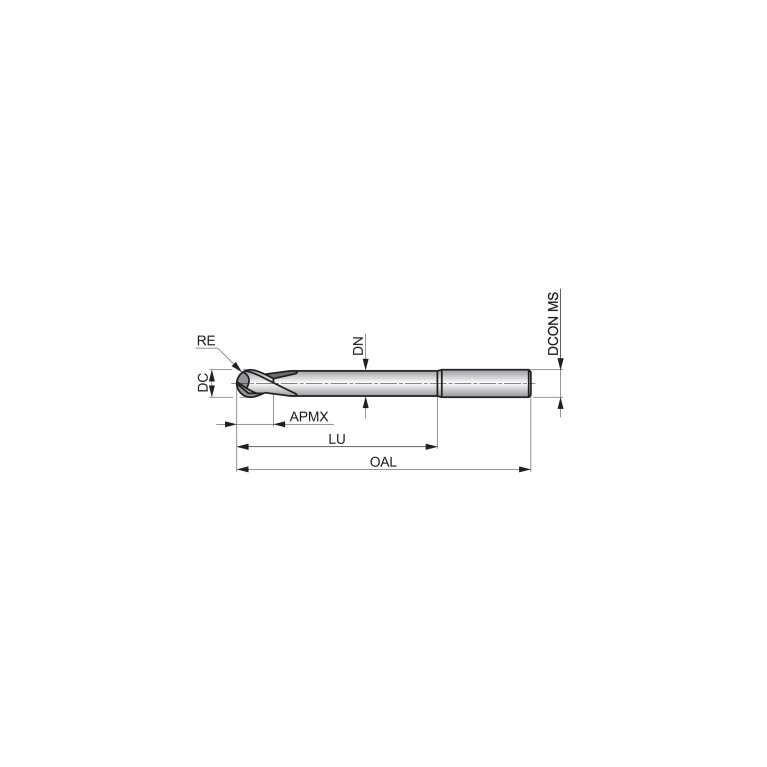

APMX Depth of cut maximum

4 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiSiN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

Delivery state valid from

6/1/2024

DIN

ZYL00400105

DN Neck diameter

2 mm

FamilyProducts

2-Flute Solid Carbide Ball-Nosed End Mill, Extra Long Reach

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

3 Degree

GRDMFG Grade manufacturers designation

TiSiN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

6706554

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

Materials

P,M,S

Name Identifying order number

S2332.0XD4

OAL Overall length

100 mm

STDNO Standard

DORMER

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling

WT Weight of item

0.022 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
