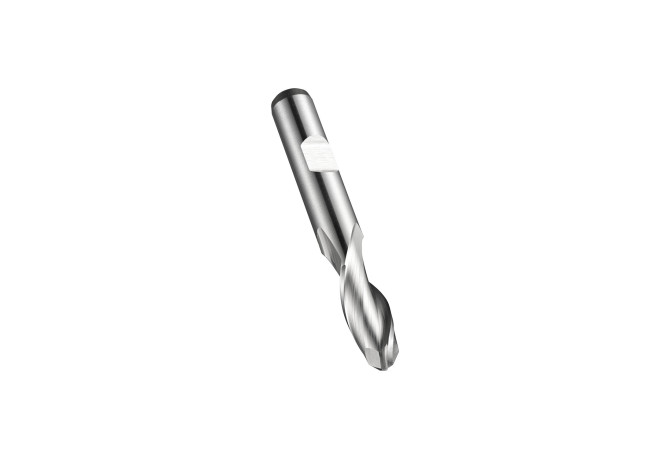

Главная Каталог продукции Toolunited 13 303-06 - Ball-nosed end mill C5058.0

C5058.0

Артикул: 5985530

В наличии

В корзину

Описание

Характеристики

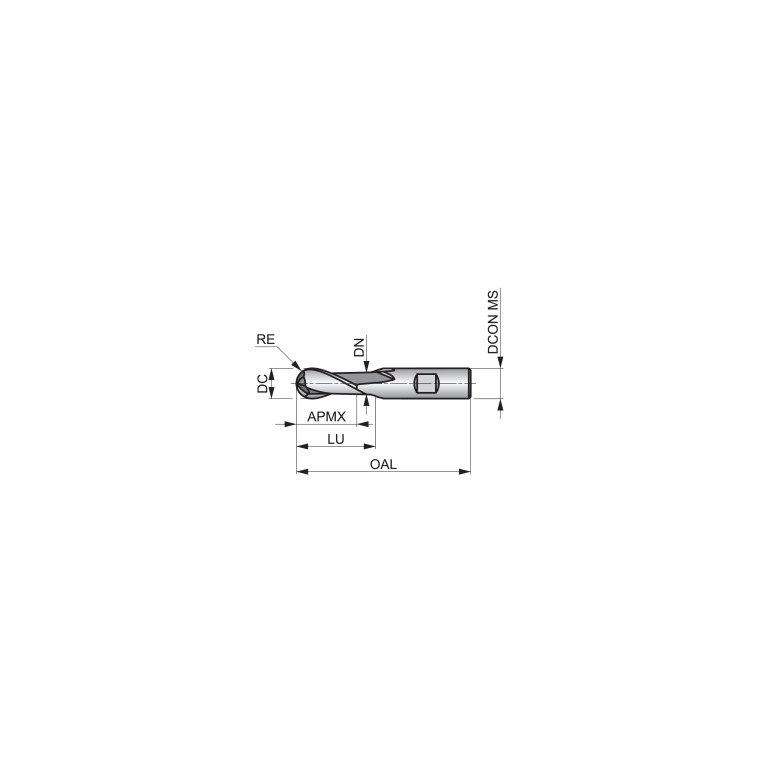

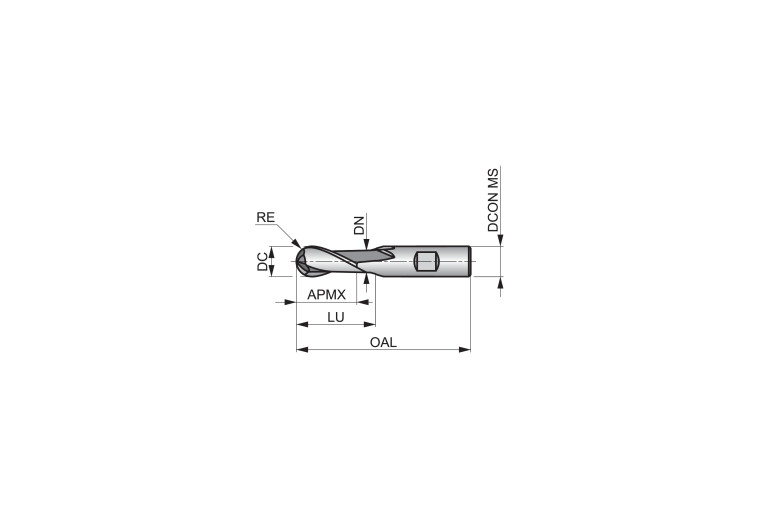

APMX Depth of cut maximum

19 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

Delivery state valid from

6/1/2024

DIN

ZYL01001005

DN Neck diameter

8 mm

FamilyProducts

2-Flute HSS-E Ball-Nosed End Mill, Bright Finish

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

12 Degree

GRDMFG Grade manufacturers designation

Bright

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

5985530

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

19.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001005

Materials

P,M,K,N,S

Name Identifying order number

C5058.0

OAL Overall length

69 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN844

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling

WT Weight of item

0.037 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
