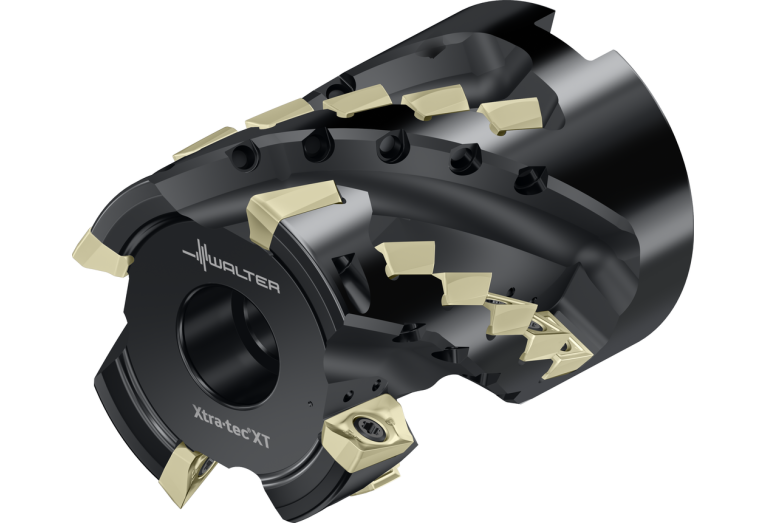

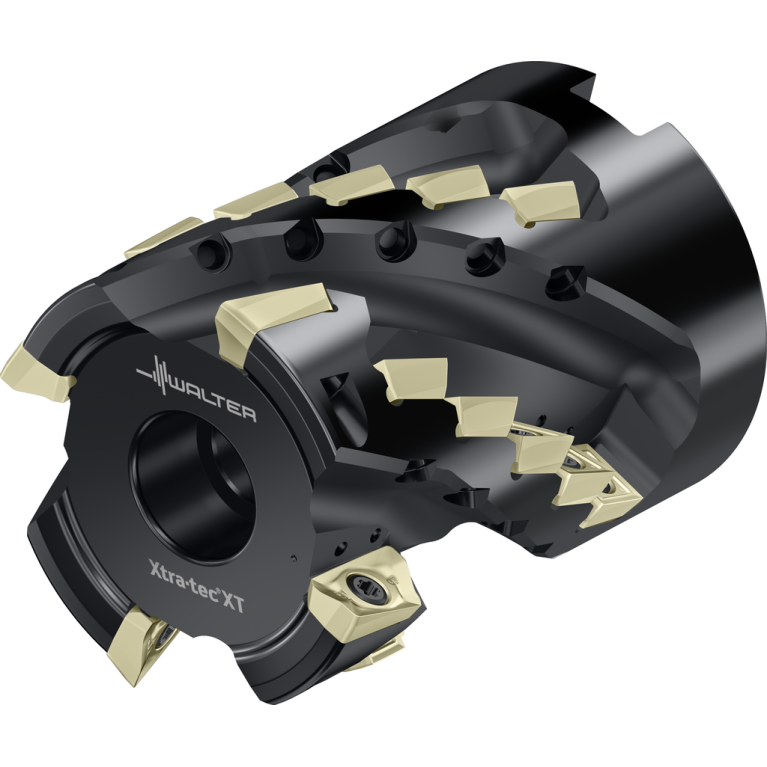

Главная Каталог продукции Toolunited 13 308-04 - Shell milling cutter M5250.064-B26-04-62-16

M5250.064-B26-04-62-16

Артикул: 8457203

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BD Body diameter

61 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

1.14 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CWN Cutting width minimum

62 mm

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63.5 mm

Delivery state valid from

6/1/2024

DHUB Hub diameter

61.22 mm

DIN

FDA10001230

FamilyProducts

Helical milling cutters M5250

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8457203

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

FDA12S1000$$$$

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 ISO

WR$$SC1105**3R*****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SC1105**3R*****

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

FDA12S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001230

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

M5250.064-B26-04-62-16

OAL Overall length

85 mm

RPMX Rotational speed maximum

13100 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

1.115 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
