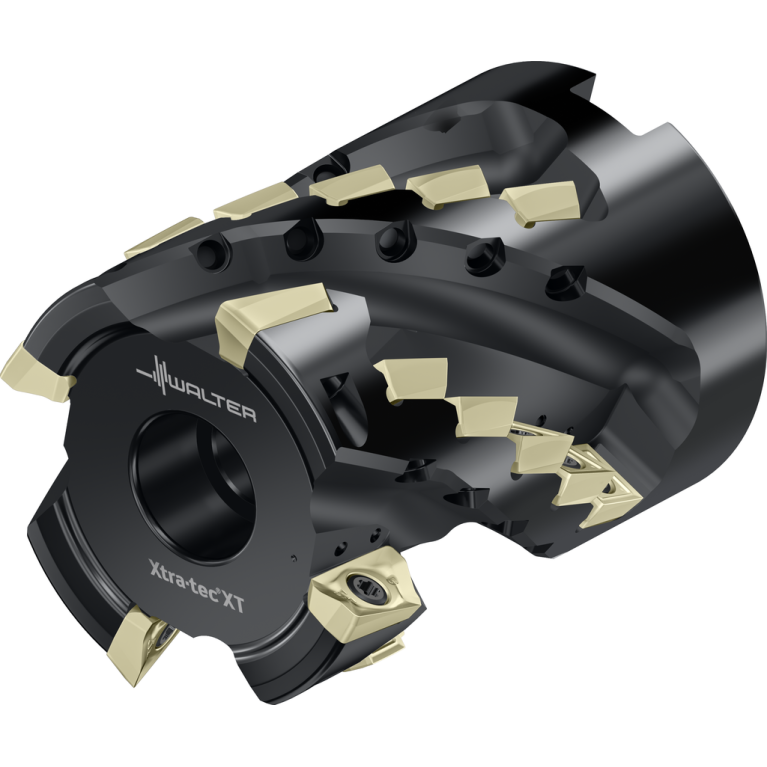

M5250-080-B32-05-62-16
M5250-080-B32-05-62-16
Артикул:
8457200
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
77.67 mm
BLDA Tool style code Position A
5
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
1.165 mm
CICT Cutting item count
30
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CWN Cutting width minimum
62 mm
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
80 mm
Delivery state valid from
6/1/2024
DHUB Hub diameter
77.67 mm
DIN
FDA03201210
FamilyProducts
Helical milling cutters M5250
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
8457200
Interface codes
J6 / J61
ISO
FDA12G3200$$$$
ISYC Subclass
308-04 - Shell milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCGT110502-G51
LOC-02 ISO
WR$$SC1105**3R*****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-SC1105**3R*****
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
FDA12G3200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201210
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
M5250-080-B32-05-62-16
OAL Overall length
85 mm
RPMX Rotational speed maximum
11600 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
1.871 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
