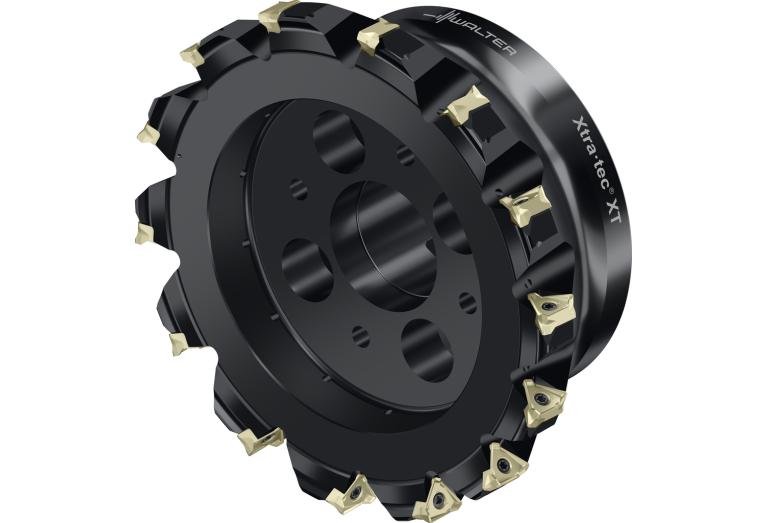

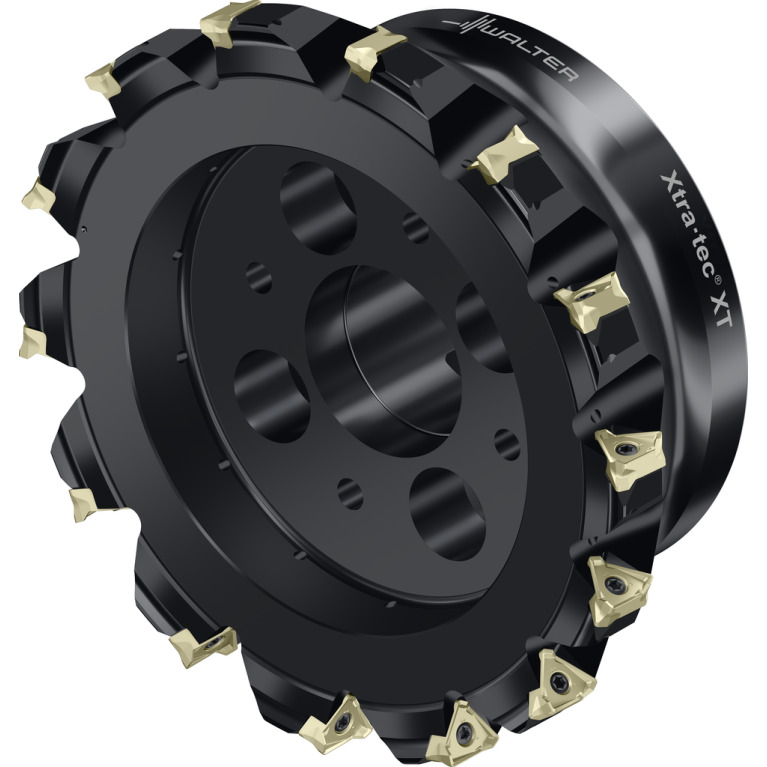

Главная Каталог продукции Toolunited 13 308-02 - Shoulder milling cutter M5137-160-B40-14-08

M5137-160-B40-14-08

Артикул: 8584456

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

AZ Plunge depth maximum

0.7 mm

BD Body diameter

157.5 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

8 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

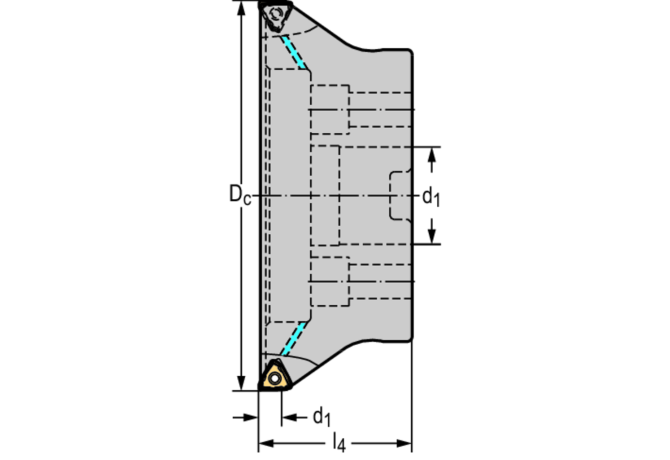

DC Cutting diameter

160 mm

Delivery state valid from

6/1/2024

DHUB Hub diameter

120 mm

DIN

SPK04000113

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5137

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8584456

Interface codes

J6 / J61

ISO

SPK01G4000$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Type

SPK Spindle nose mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

SPK01G4000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000113

Name Identifying order number

M5137-160-B40-14-08

OAL Overall length

63 mm

RMPX Ramping angle maximum

0.5 Degree

RPMX Rotational speed maximum

6000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO6462

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

4.5 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
