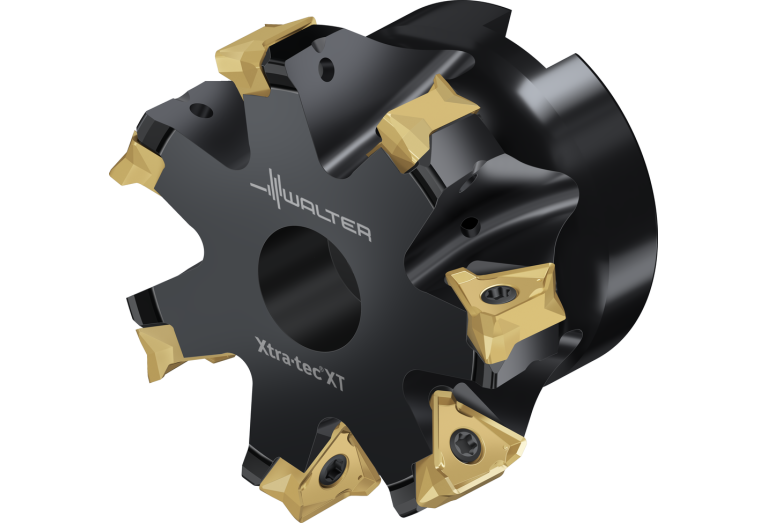

M5137-125-B40-13-08

Артикул: 8584454

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

AZ Plunge depth maximum

0.5 mm

BD Body diameter

122.5 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

8 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

125 mm

DCCB Counterbore diameter connection bore

33 mm

Delivery state valid from

6/1/2024

DHUB Hub diameter

97 mm

DIN

FDA04001210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5137

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8584454

Interface codes

J6 / J61

ISO

FDA12G4000$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

24 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

FDA12G4000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04001210

Name Identifying order number

M5137-125-B40-13-08

OAL Overall length

63 mm

RMPX Ramping angle maximum

0.7 Degree

RPMX Rotational speed maximum

6800 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO6462

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

3.42 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
