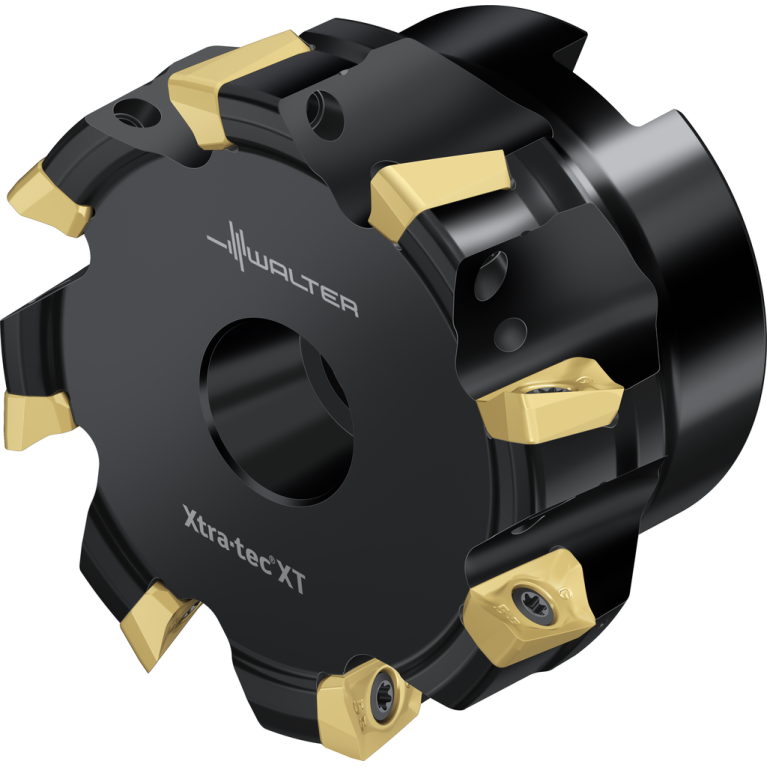

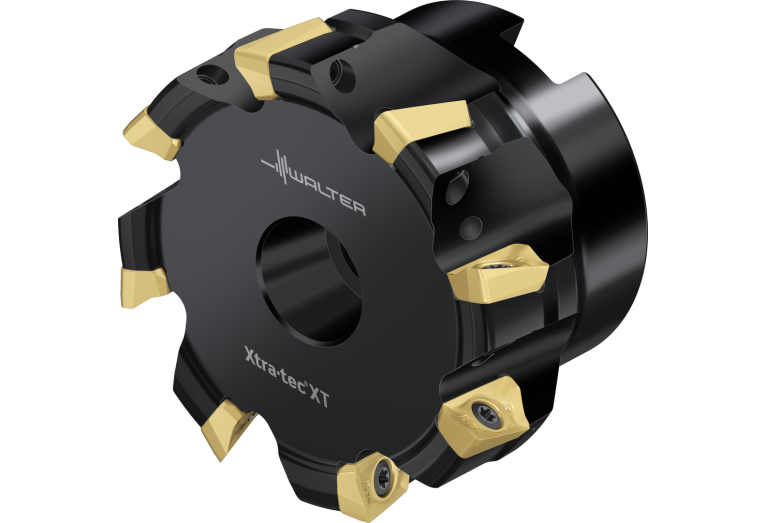

Главная Каталог продукции Toolunited 13 308-02 - Shoulder milling cutter M5130.064-B26-07-12

M5130.064-B26-07-12

Артикул: 8562272

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

AZ Plunge depth maximum

0.704 mm

BD Body diameter

61 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

12 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

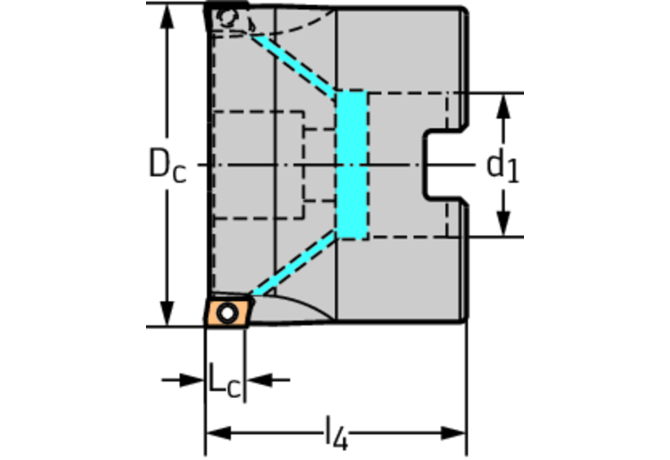

DC Cutting diameter

63.5 mm

Delivery state valid from

12/1/2024

DHUB Hub diameter

57.15 mm

DIN

FDA10001230

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5130

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8562272

Interface codes

J6 / J61

ISO

FDA12S1000$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

15 mm

LF Functional length

40 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

FDA12S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001230

Name Identifying order number

M5130.064-B26-07-12

OAL Overall length

40 mm

RMPX Ramping angle maximum

1.525 Degree

RPMX Rotational speed maximum

16800 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO6462

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.557 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
