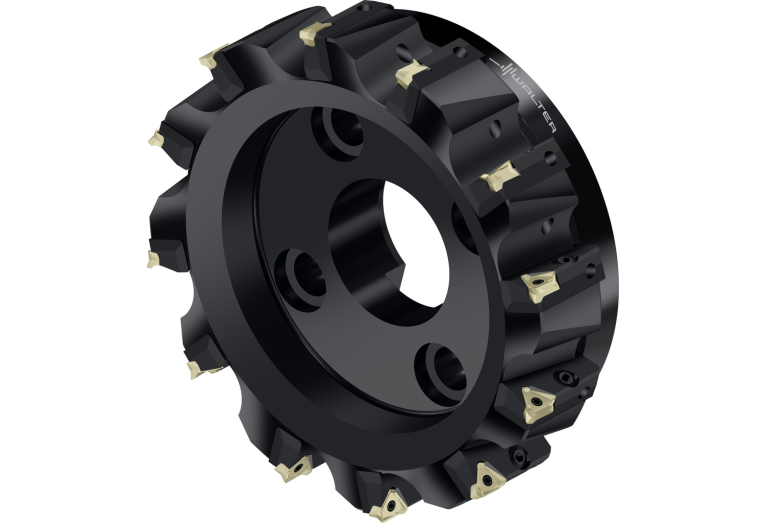

F2010.UB.254.Z16.08R769M
F2010.UB.254.Z16.08R769M
Артикул:
8549944
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
253 mm
BLDA Tool style code Position A
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8 mm
CICT Cutting item count
16
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
254 mm
Delivery state valid from
6/1/2024
DHUB Hub diameter
130 mm
DIN
SPK25000223
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
16
FamilyProducts
Shoulder milling cutters F2010
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
8549944
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SPK02S2500$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 CCTMS Type
SPK Spindle nose mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
2500
LOC-03 DCONMS Diameter
63.5 mm
LOC-03 ISO
SPK02S2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK25000223
Name Identifying order number
F2010.UB.254.Z16.08R769M
OAL Overall length
63.5 mm
RMPX Ramping angle maximum
0.1 Degree
RPMX Rotational speed maximum
3700 1/min
STDLET Standard letter to the standard number
C
STDNO Standard
ISO6462
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
16.5 kg
ZEFF Face effective cutting edge count
16
ZEFP Peripheral effective cutting edge count
16
