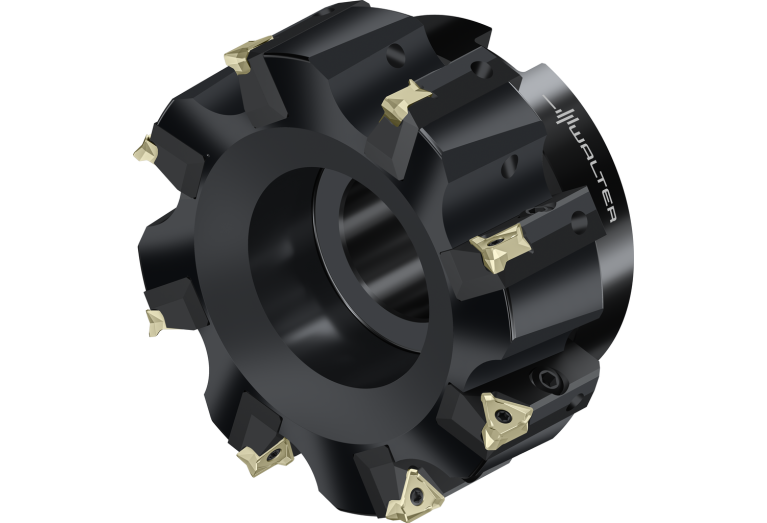

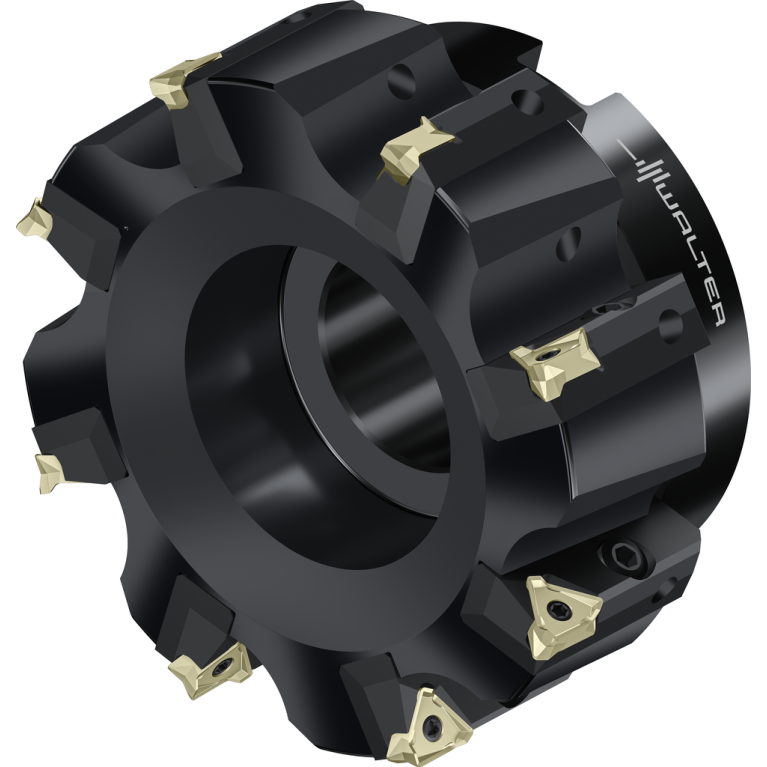

Главная Каталог продукции Toolunited 13 308-02 - Shoulder milling cutter F2010.UB.102.Z07.08R769M

F2010.UB.102.Z07.08R769M

F2010.UB.102.Z07.08R769M F2010.UB.102.Z07.08R769M F2010.UB.102.Z07.08R769M

F2010.UB.102.Z07.08R769M

Walter
Артикул: 8549938
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
100.6 mm
BLDA Tool style code Position A
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

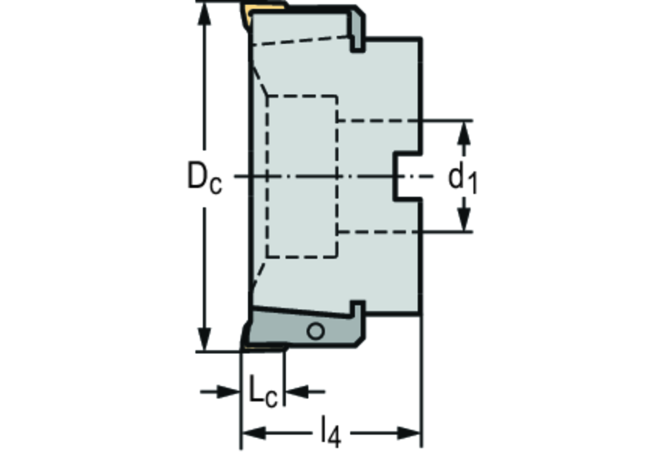

DC Cutting diameter
101.6 mm
Delivery state valid from
6/1/2024
DHUB Hub diameter
75.387 mm
DIN
FDA12501220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Shoulder milling cutters F2010
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
8549938
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12S1250$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
FDA12S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12501220
Name Identifying order number
F2010.UB.102.Z07.08R769M
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
0.1 Degree
RPMX Rotational speed maximum
5900 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
2.6 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
