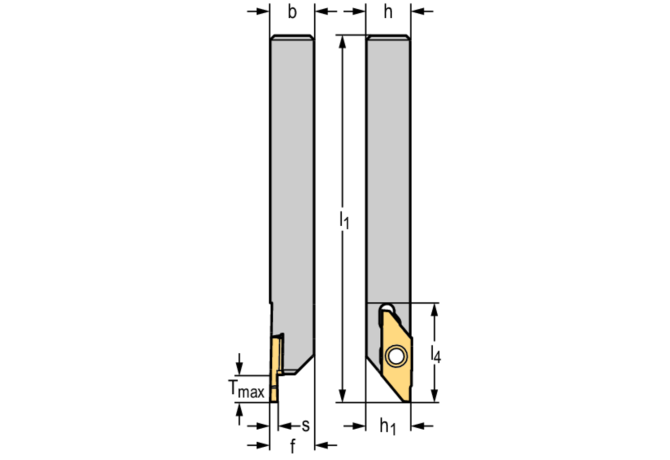

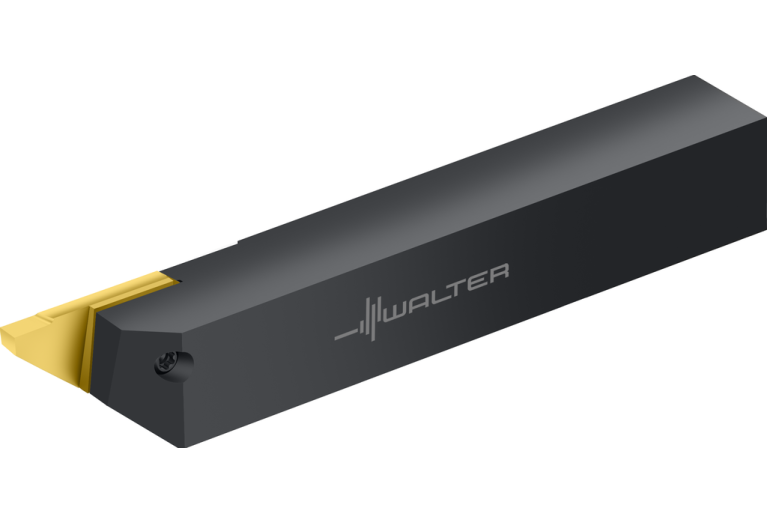

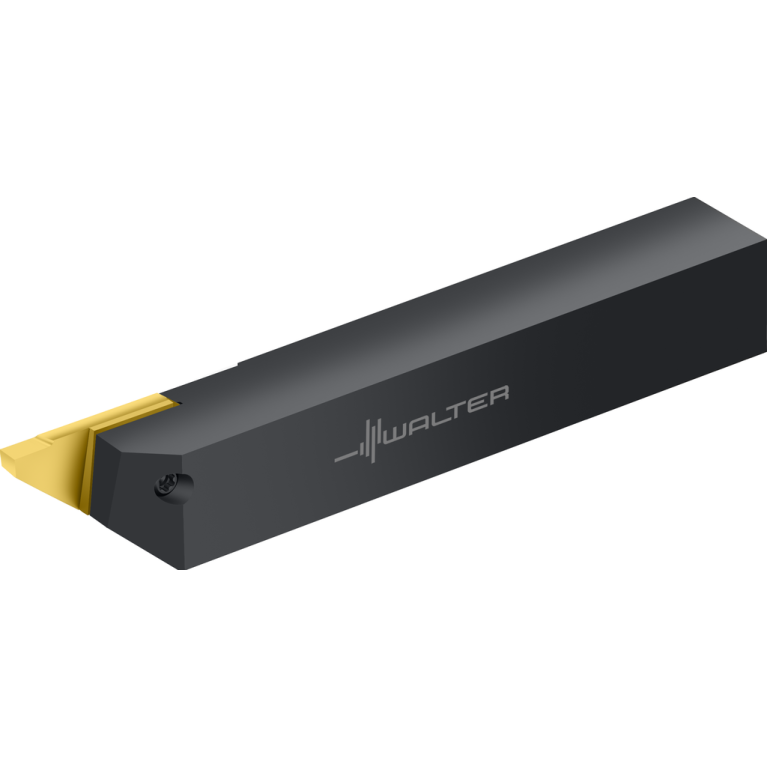

Главная Каталог продукции Toolunited 13 309-04 - Turning tool for OD grooving and parting W2011.10L-WT26

W2011.10L-WT26

Артикул: 8464613

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

8.5 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CW Cutting width

0.5 mm

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

6/1/2024

DIN

VKT10100125

DIN CSW1

W-WT2603**3L*****

FamilyProducts

Shank tool – Radial grooving W2011

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

15.875 mm

ID Technical product number

8464613

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01B1010$$$$

ISO CSW1

WR$$WT2603**3L*****

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

127 mm

LOC-03 B Shank width

15.875 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

1010

LOC-03 H Shank height

15.875 mm

LOC-03 ISO

VKT01B1010$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100125

LPR Protruding length

127 mm

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

W2011.10L-WT26

OAL Overall length

127 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

Working process

DAA - Parting,DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,DGA - Thread turning, external

WT Weight of item

0.239 kg
