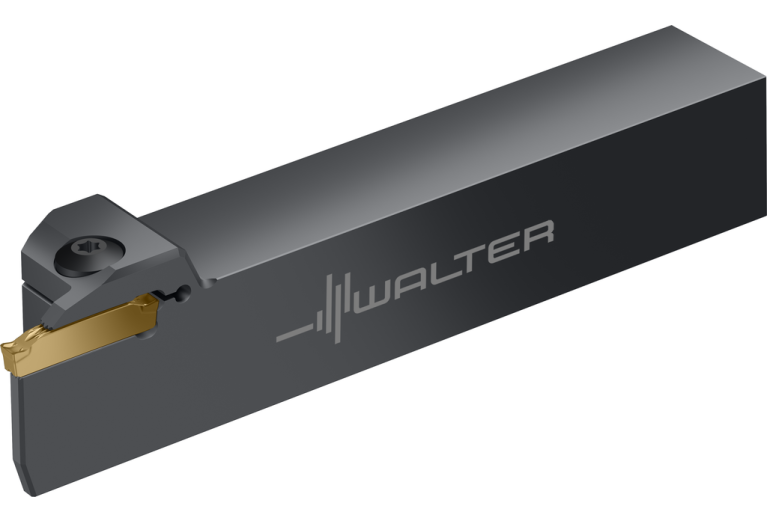

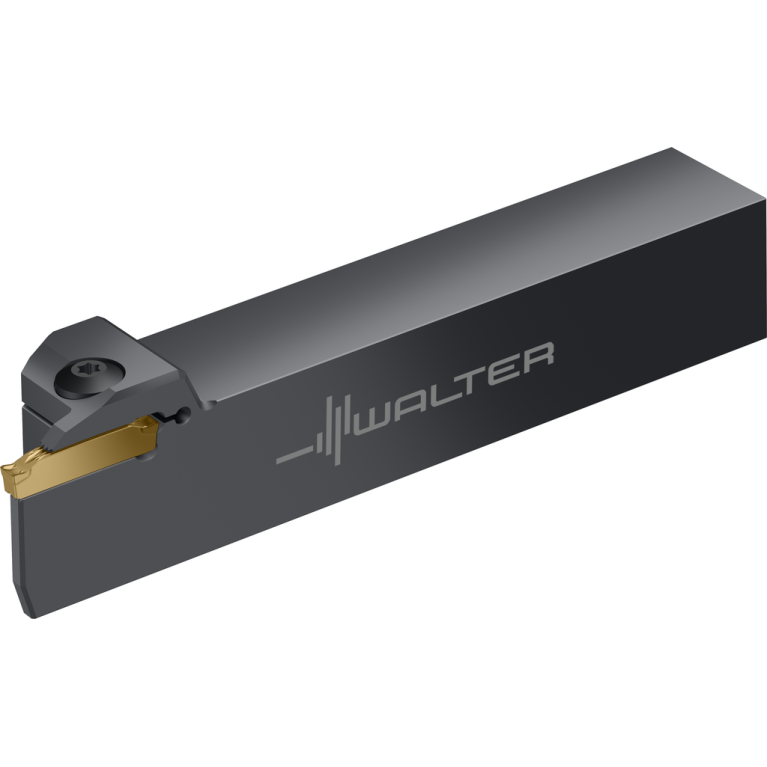

G5011-2525R-6T21GD26
G5011-2525R-6T21GD26
Артикул:
8543701
В наличии

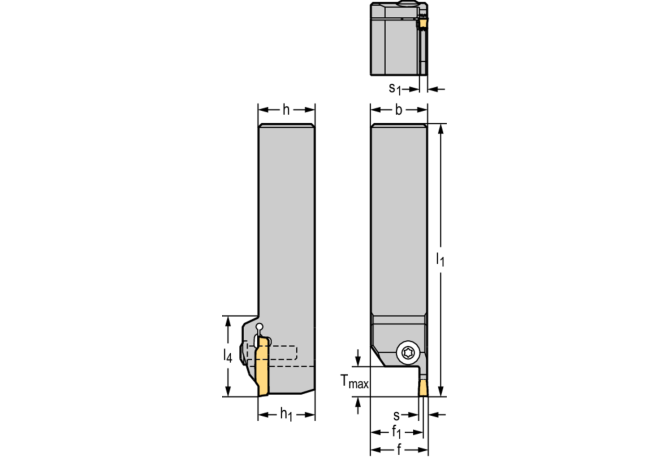

Характеристики
CDX Cutting depth maximum
21 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
12/1/2024
DIN
VKT25250105
FamilyProducts
Shank tool – Radial grooving G5011
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
8543701
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A2525$$$$
ISO CSW1
WR$$GD266000***EX30
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2525
LOC-03 H Shank height
25 mm
LOC-03 ISO
VKT01A2525$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
LPR Protruding length
150 mm
LTA Length tool assembly
40 mm
Name Identifying order number
G5011-2525R-6T21GD26
OAL Overall length
150 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
22.8 mm
Working process
DAA - Parting,DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning
WT Weight of item
0.646 kg
