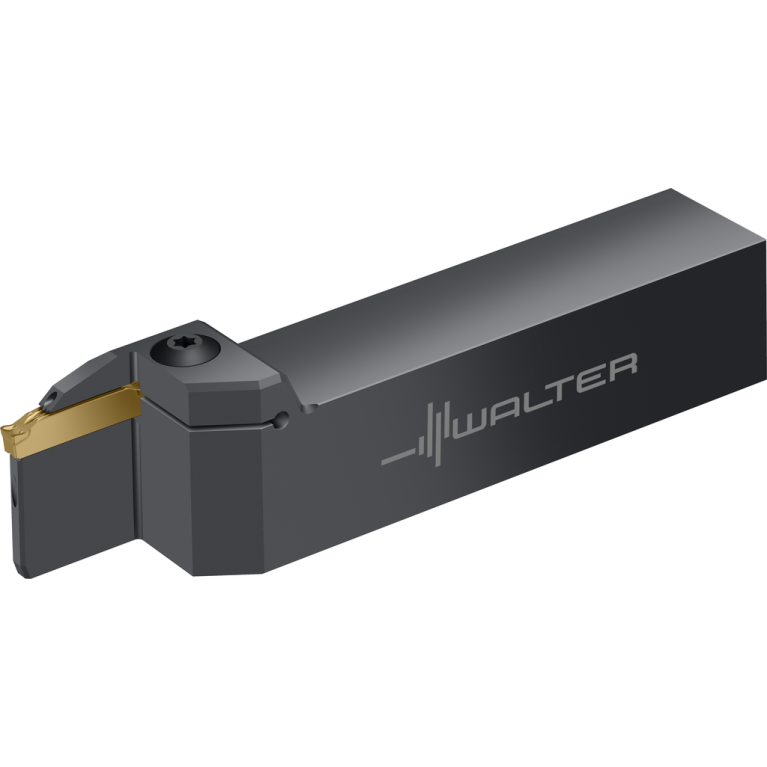

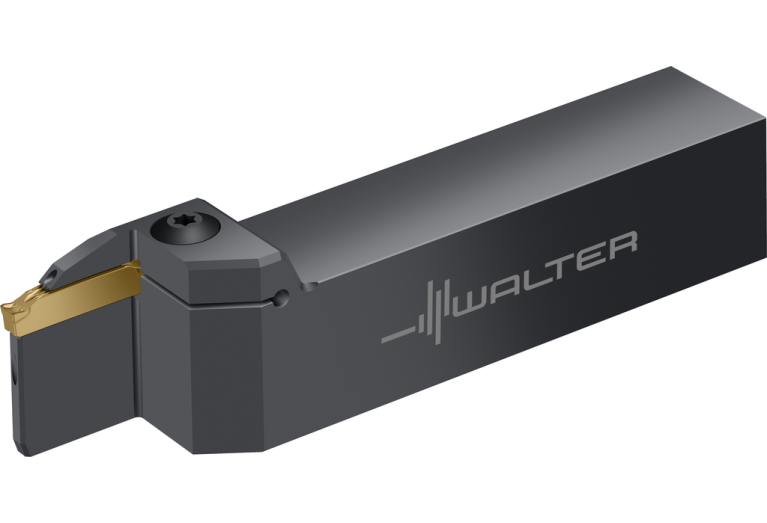

Главная Каталог продукции Toolunited 13 309-04 - Turning tool for OD grooving and parting G5011-2020L-4T21GD26-P

G5011-2020L-4T21GD26-P

Артикул: 8543730

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

21 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

Delivery state valid from

12/1/2024

DIN

VKT20200115

FamilyProducts

Shank tool – Radial grooving G5011...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

8543730

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2020$$$$

ISO CSW1

WR$$GD264000***EX30

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

125 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

LPR Protruding length

125 mm

LTA Length tool assembly

40 mm

Name Identifying order number

G5011-2020L-4T21GD26-P

OAL Overall length

125 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

18.3 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,DGA - Thread turning, external

WT Weight of item

0.299 kg
