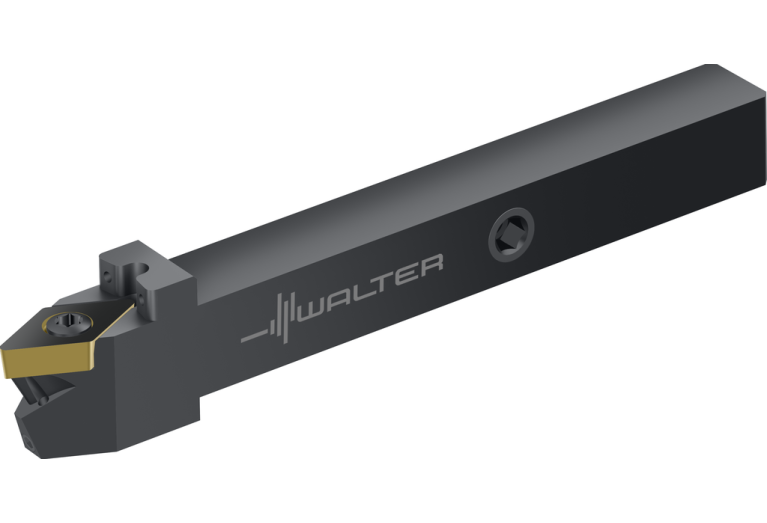

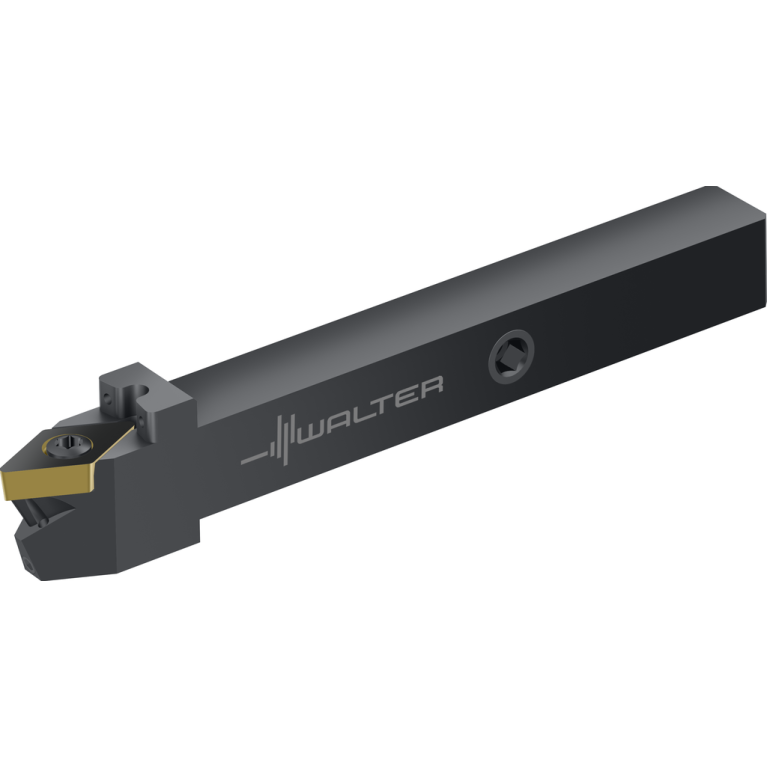

Главная Каталог продукции Toolunited 13 309-01 - Tool holder for longitudinal and transversal turning SDNCN1616X11-P

SDNCN1616X11-P

Артикул: 8459323

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

Delivery state valid from

6/1/2024

DIN

VKT16160115

DIN CSW1

DC11T3993N

EPSR Insert included angle

55 Degree

FamilyProducts

Shank tool – Screw clamping SDNC...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

16 mm

ID Technical product number

8459323

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A1616$$$$

ISO CSW1

ISO$DC11T3003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

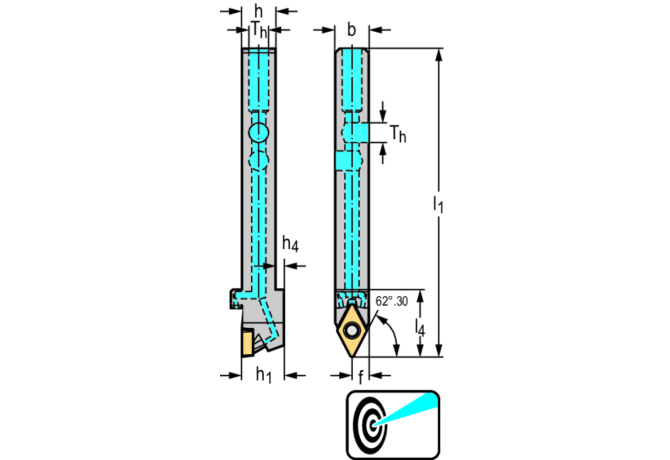

KAPR Tool cutting edge angle

62.5 Degree

L Cutting edge length

11.6 mm

LAMS Inclination angle

0 Degree

LF Functional length

120 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160115

LPR Protruding length

120 mm

MIID Master insert identification

DCMT 11 T3 08

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SDNCN1616X11-P

OAL Overall length

120 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

8 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.198 kg
