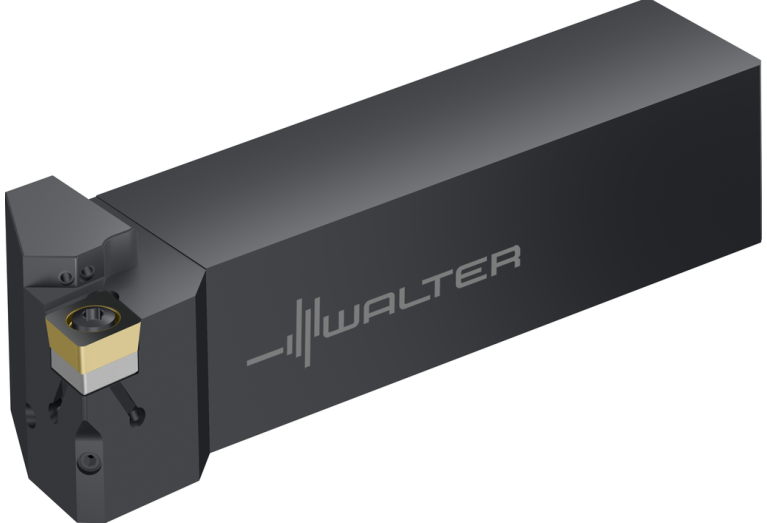

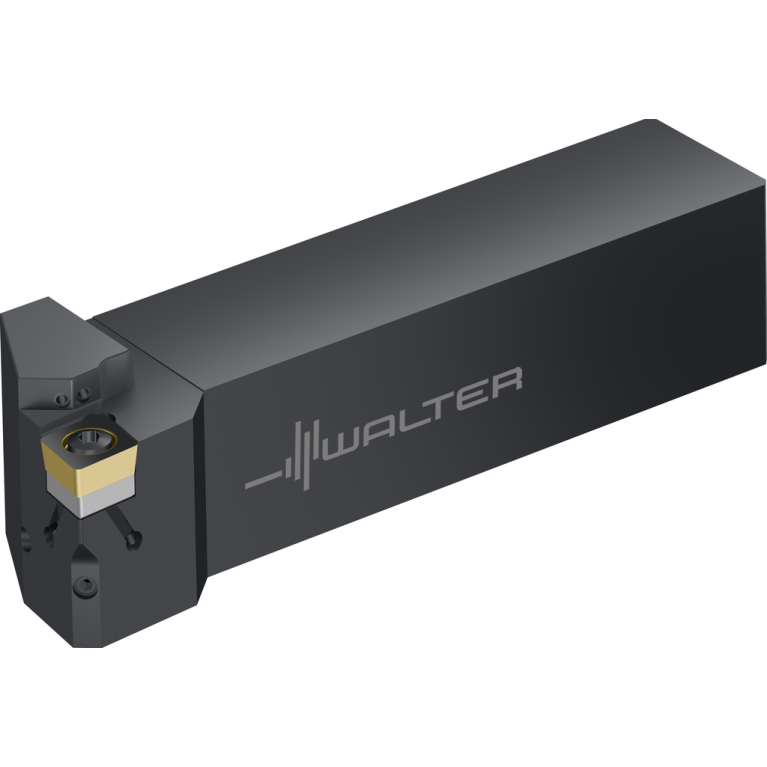

Главная Каталог продукции Toolunited 13 309-01 - Tool holder for longitudinal and transversal turning SCLCR2020X09-P

SCLCR2020X09-P

Артикул: 8459340

В наличии

В корзину

Описание

Характеристики

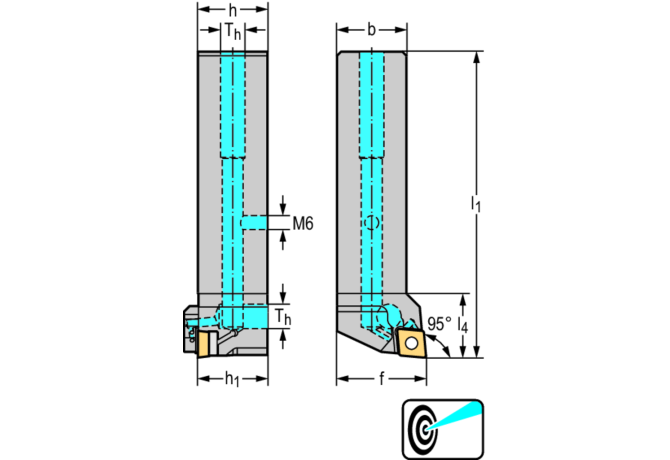

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

Delivery state valid from

6/1/2024

DIN

VKT20200115

DIN CSW1

CC09T3993N

EPSR Insert included angle

80 Degree

FamilyProducts

Shank tool – Screw clamping SCLC...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

8459340

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A2020$$$$

ISO CSW1

ISO$CC09T3003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

9.6 mm

LAMS Inclination angle

0 Degree

LF Functional length

95 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

LPR Protruding length

95 mm

MIID Master insert identification

CCMT 09 T3 08

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SCLCR2020X09-P

OAL Overall length

95 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

25 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.266 kg
