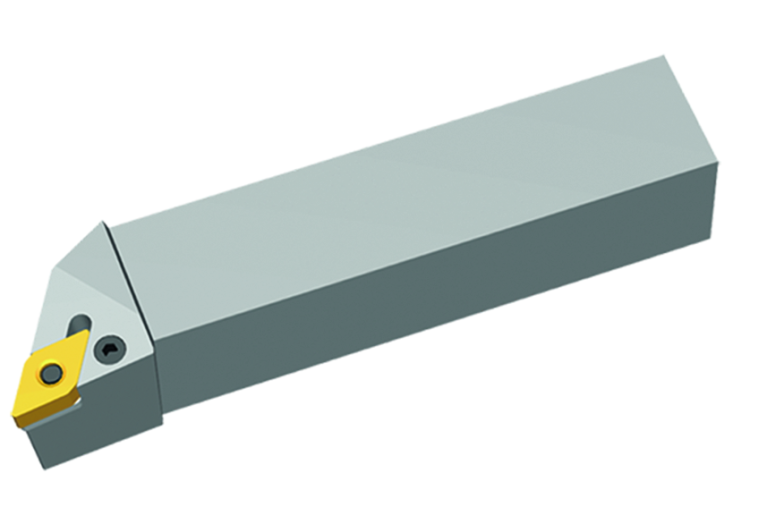

PDJNL3232P15-3

Артикул: PDJNL3232P15-3

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12.7 kg

DIN

VKT32320105

DIN CSW1

DN1506162N

EPSR Insert included angle

55 Degree

FamilyProducts

DN** holder (external)

HAND Cutting direction

L - Left

HF Functional height

32 mm

ID Identifying order number

PDJNL3232P15-3

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

15.5 mm

LF Functional length

170 mm

LH Head length

35 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

DNMG150604

MTP Clamping type code

P - Hole clamping, with straight bore

OAL Overall length

170 mm

STDDES Standard designation

PDJNL*3232P15-3

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

40 mm

Working process

DDA - External turning,DFA - External form turning,DPA - Profiling external
