Главная Каталог продукции Toolunited 13 309-01 - Tool holder for longitudinal and transversal turning DDJNL2020K11

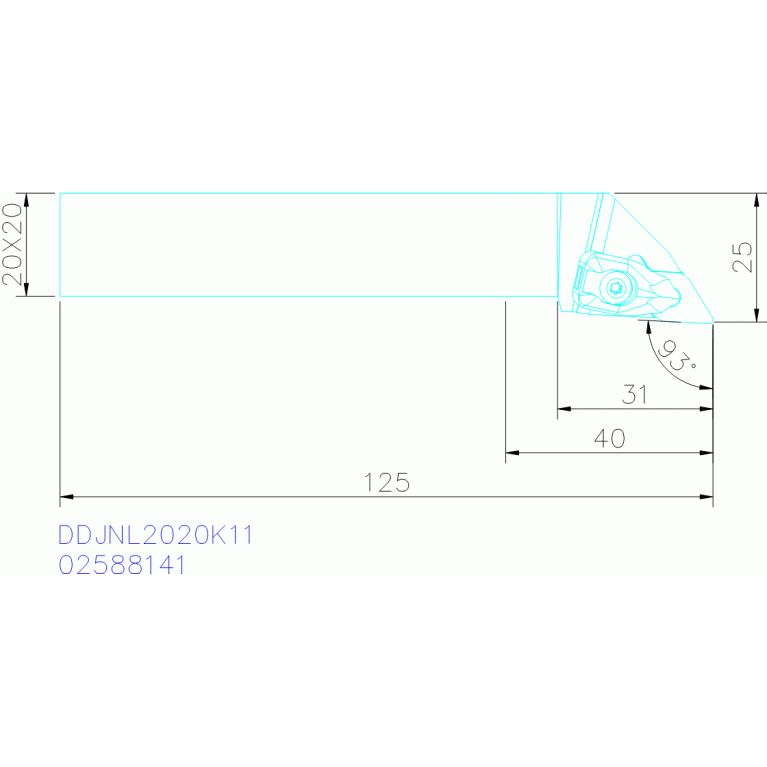

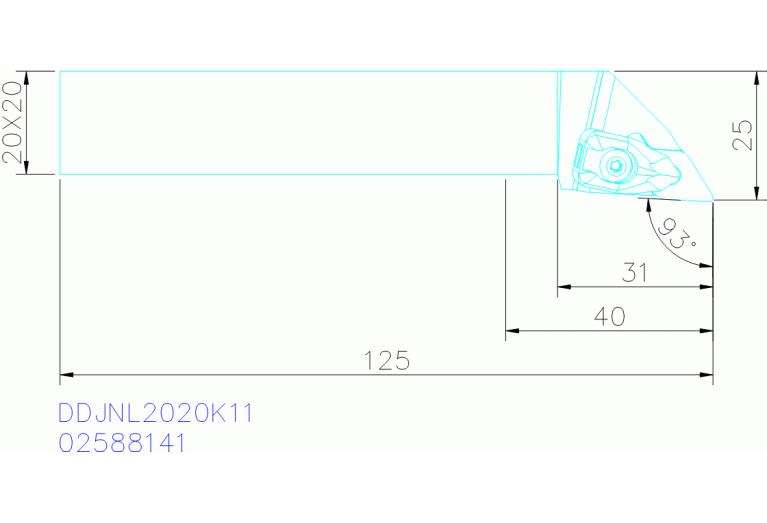

DDJNL2020K11

DDJNL2020K11 DDJNL2020K11 DDJNL2020K11 DDJNL2020K11

DDJNL2020K11

SECO Tools
Артикул: 02588141
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT20200105
EPSR Insert included angle
55 Degree
FamilyProducts
DDJNL2020K11
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02588141
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$DN1104**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

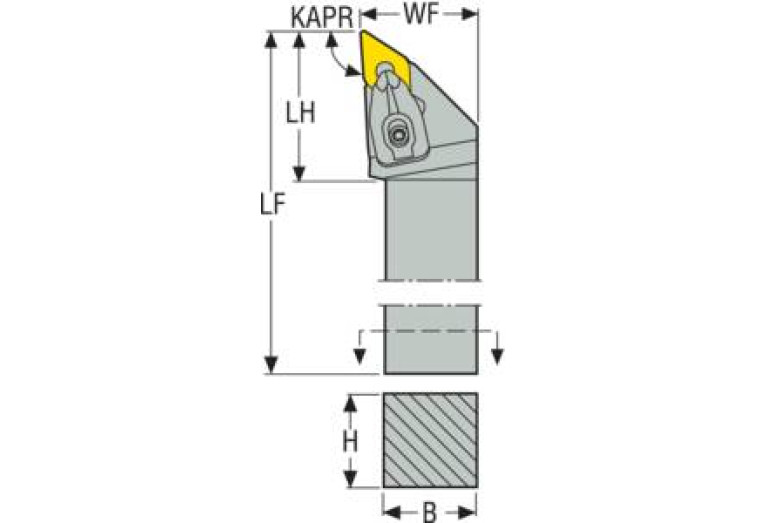

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
125 mm
LH Head length
31 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
DNMA110408S
MTP Clamping type code
D
Name Identifying order number
DDJNL2020K11
STDDES Standard designation
DDJNL2020K11
THSC Tool holder shape code
A - offset shank design
WF Functional width
25 mm
Working process
No working processes available
WT Weight of item
0.371 kg
