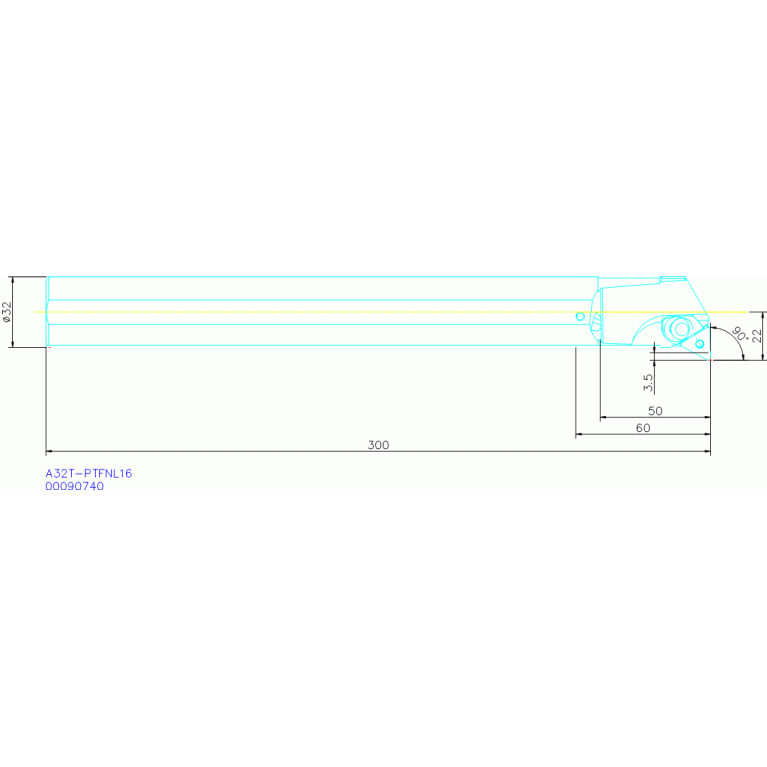

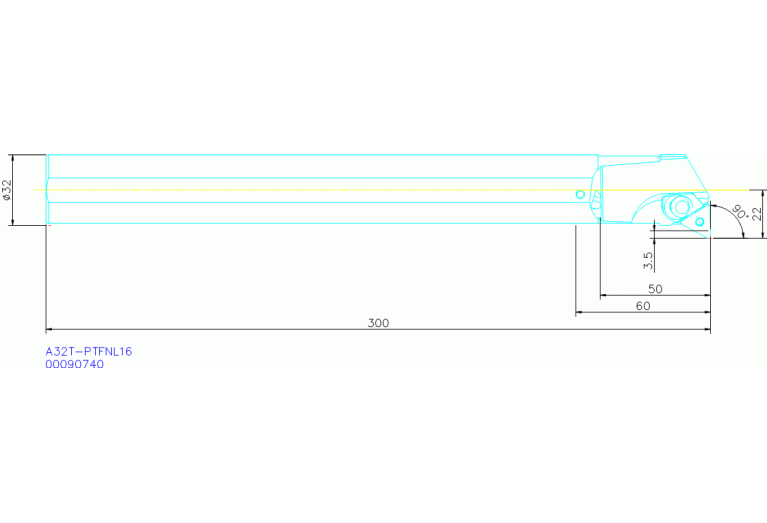

A32T-PTFNL16
A32T-PTFNL16
Артикул:
00090740
В наличии
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL03202215
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
60 Degree
FamilyProducts
A32T-PTFNL16
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
00090740
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$TN1604**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
300 mm
LH Head length
50 mm
LOC-03 B Shank width
31 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
MIID Master insert identification
TNGA160404S-01020-L1-C
MTP Clamping type code
W
Name Identifying order number
A32T-PTFNL16
STDDES Standard designation
A32T-PTFNL16
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
1.524 kg
