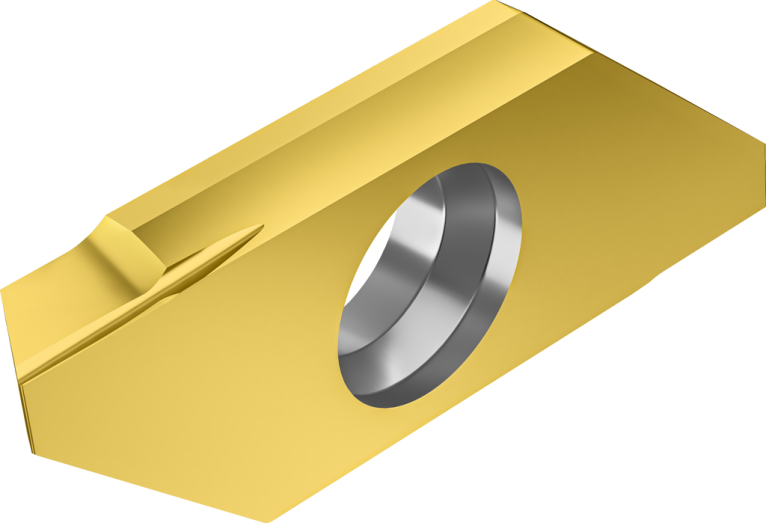

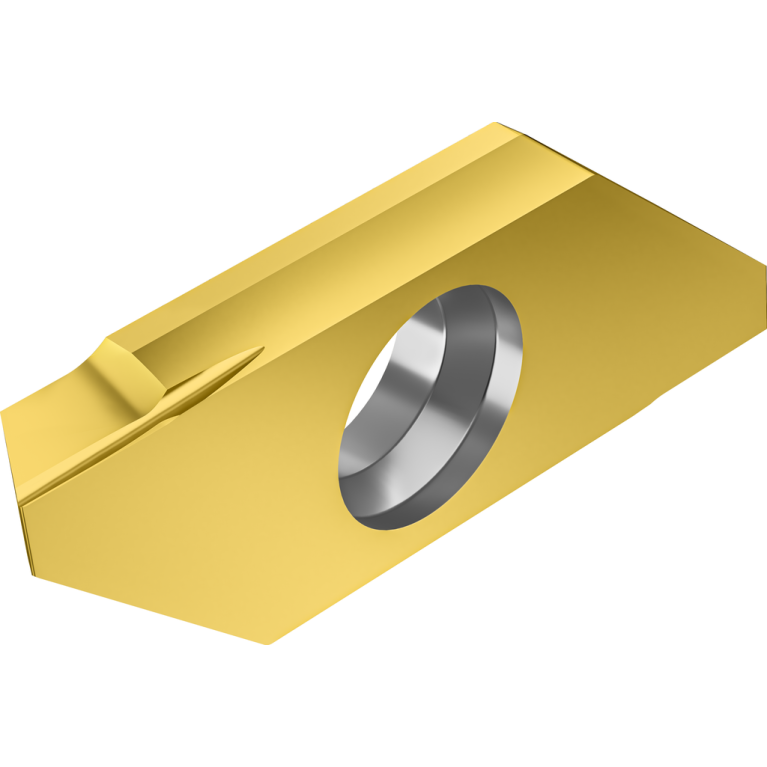

Главная Каталог продукции Toolunited 13 202-01 - Insert, one cutting edge for grooving, screw mounting WT26-R300L020-DG8 WN23

WT26-R300L020-DG8 WN23

Артикул: 8464591

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

DG8

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

W - Walter

CW Cutting width

3 mm

Delivery state valid from

6/1/2024

DIN

W-WT2603$$3LA**$$

FamilyProducts

Forward turning – cutting inserts WT

GRDMFG Grade manufacturers designation

WN23

ID Technical product number

8464591

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

INSL Insert length

25 mm

Interface codes

J6 / J61

ISO

WR$$WT2603$$3LA**$$

ISYC Subclass

202-01 - Insert, one cutting edge for grooving, screw mounting

LOC-03 ISO

WR$$WT2603$$3LA**$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-WT2603$$3LA**$$

Name Identifying order number

WT26-R300L020-DG8 WN23

NOF Flute count

PFS Profile form

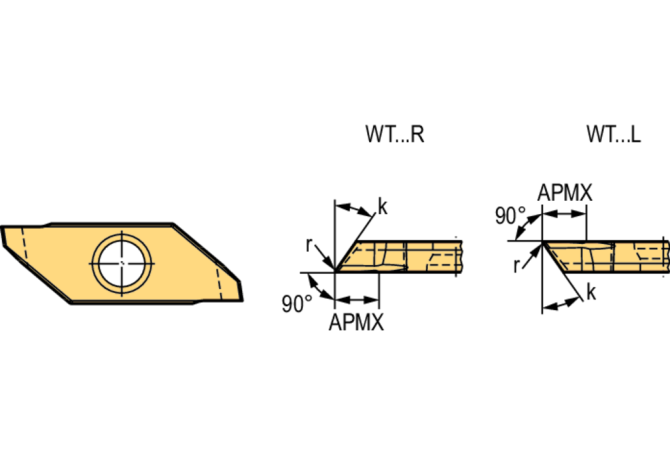

PSIRL Cutting edge angle major left hand

35 Degree

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DEI - Grooving,EEA - Grooving and cutting off

WT Weight of item

0.006 kg
