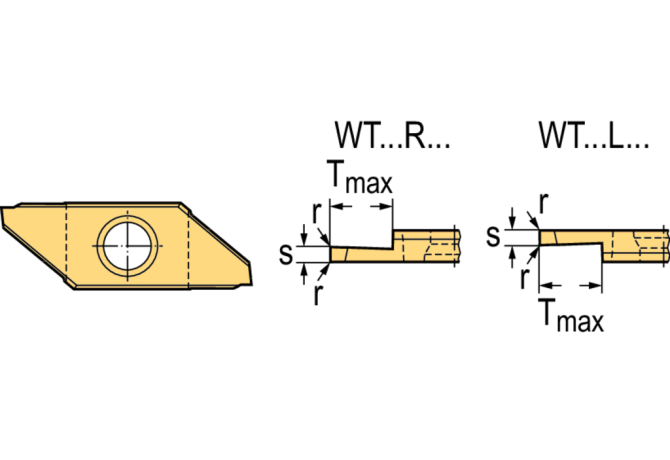

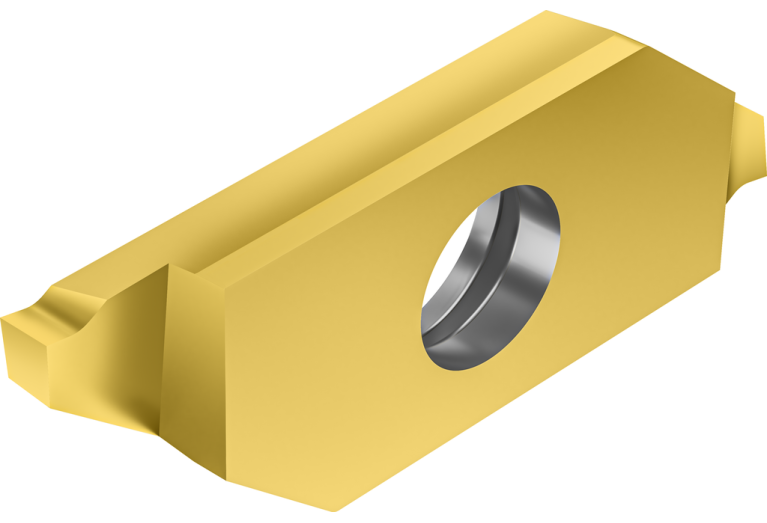

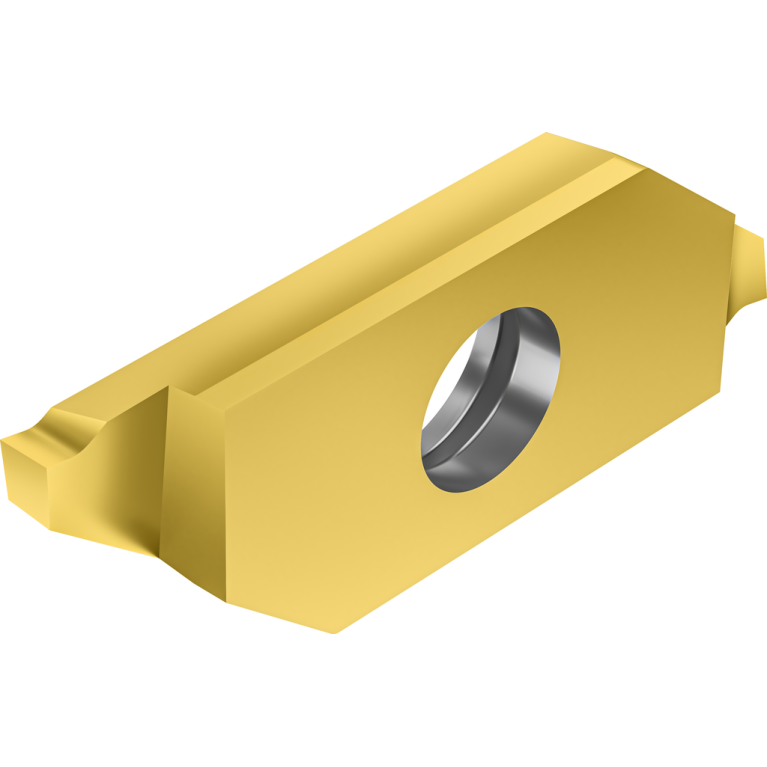

Главная Каталог продукции Toolunited 13 202-01 - Insert, one cutting edge for grooving, screw mounting WT26-L100N00-GD8 WSM23X

WT26-L100N00-GD8 WSM23X

Артикул: 8464594

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

ANL Clearance angle flank left hand

2 Degree

ANR Clearance angle flank right hand

2 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

GD8

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN

COMPC Company code

W - Walter

CW Cutting width

1 mm

Delivery state valid from

6/1/2024

DIN

W-WT2603$$3LA**$$

FamilyProducts

Grooving and parting off – cutting inserts WT

GRDMFG Grade manufacturers designation

WSM23X

ID Technical product number

8464594

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

INSL Insert length

25 mm

Interface codes

J6 / J61

ISO

WR$$WT2603$$3LA**$$

ISYC Subclass

202-01 - Insert, one cutting edge for grooving, screw mounting

LOC-03 ISO

WR$$WT2603$$3LA**$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-WT2603$$3LA**$$

Name Identifying order number

WT26-L100N00-GD8 WSM23X

NOF Flute count

PDPT Profile depth insert

2.7 mm

PFS Profile form

RAL Relief angle lh

1 Degree

RAR Relief angle rh

1 Degree

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DEI - Grooving,EEA - Grooving and cutting off

WT Weight of item

0.006 kg
