Главная Каталог продукции Toolunited 13 202-01 - Insert, one cutting edge for grooving, screw mounting TMIR 8-0.50-0.00 TT8020

TMIR 8-0.50-0.00 TT8020

Артикул: 6248519

В наличии

В корзину

Описание

Характеристики

COATN Coating

TiCN

COMPC Company code

IL - Ingersoll

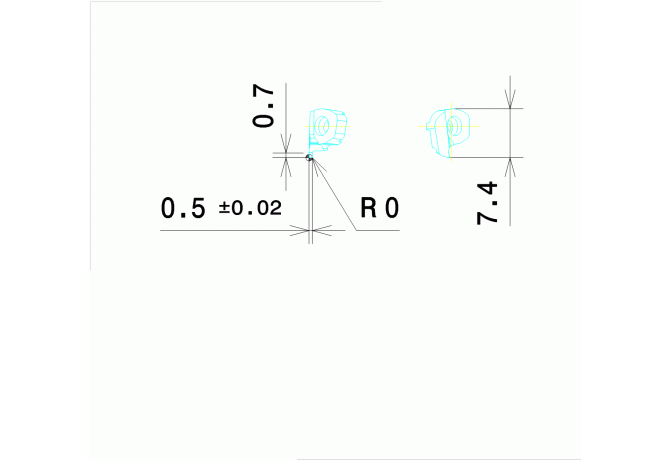

CW Cutting width

0.5 mm

Delivery state valid from

2/27/2024

DIN

IL-WSP-4528

FamilyProducts

Precise inserts for internal shallow grooving on small diameter

GRDMFG Grade manufacturers designation

TT8020

ID Technical product number

6248519

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

7.4 mm

Interface codes

J6 /

ISYC Subclass

202-01 - Insert, one cutting edge for grooving, screw mounting

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-WSP-4528

Materials

P,M,S

Name Identifying order number

TMIR 8-0.50-0.00 TT8020

NOF Flute count

PDPT Profile depth insert

0.7 mm

PFS Profile form

REL Corner radius left hand

0 mm

RER Corner radius right hand

0 mm

STDDES Standard designation

TMIR 8-0.50-0.00

Working process

No working processes available
