TDT 3.00E-1.50-RS TT9080

Артикул: 6218954

В наличии

В корзину

Описание

Характеристики

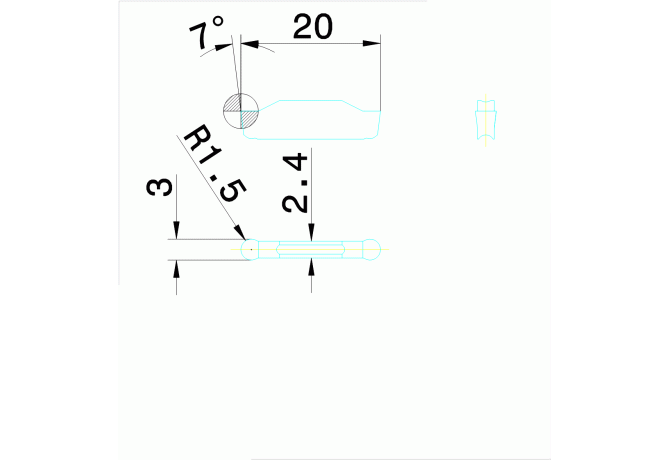

AN Clearance angle major

7 Degree

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

CRE Spot radius

1.5 mm

CW Cutting width

3 mm

Delivery state valid from

2/27/2024

DIN

IL-WSP-4460

FamilyProducts

Precision round type insert for turning, grooving and profiling

GRDMFG Grade manufacturers designation

TT9080

ID Technical product number

6218954

IH Insert hand

N - Neutral

Interface codes

J6 /

ISYC Subclass

202-06 - Insert, two cutting edges for profiling

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-WSP-4460

Materials

P,M,S

Name Identifying order number

TDT 3.00E-1.50-RS TT9080

NOF Flute count

NT Tooth count

PFS Profile form

Working process

No working processes available
