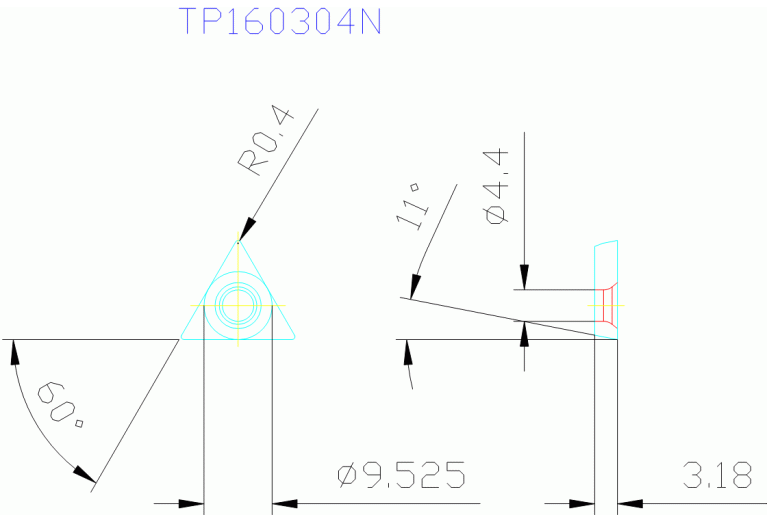

TPMR160304 MC6125
TPMR160304 MC6125
Артикул:
23088306
В наличии
Характеристики

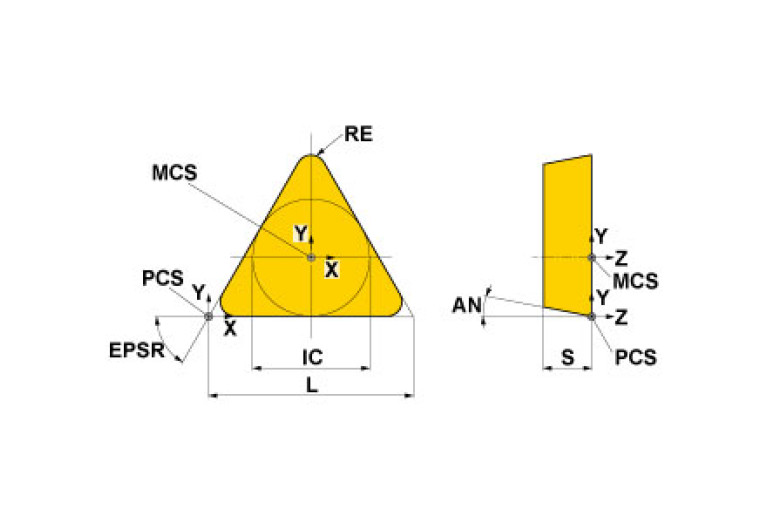

AN Clearance angle major
11 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CECC Cutting edge condition code
E - Rounded
COATN Coating
Accumulated TiCN-Al2
COMPC Company code
MI - Mitsubishi Materials
Delivery state valid from
7/2/2023
EPSR Insert included angle
60 Degree
FamilyProducts
Turning insert (Positive)
GRDMFG Grade manufacturers designation
MC6125
IC Inscribed circle diameter
9.525 mm
ID Technical product number
23088306
IFS Insert mounting style code
1 - Without bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$TP1603041NB$$04
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.5 mm
LOC-03 ISO
ISO$TP1603041NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
TPMR160304 MC6125
NOI Insert index count
3
RE Corner radius
0.4 mm
S Insert thickness
3.18 mm
STDDESAnsi Standard designation ANSI
TPMR321
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
