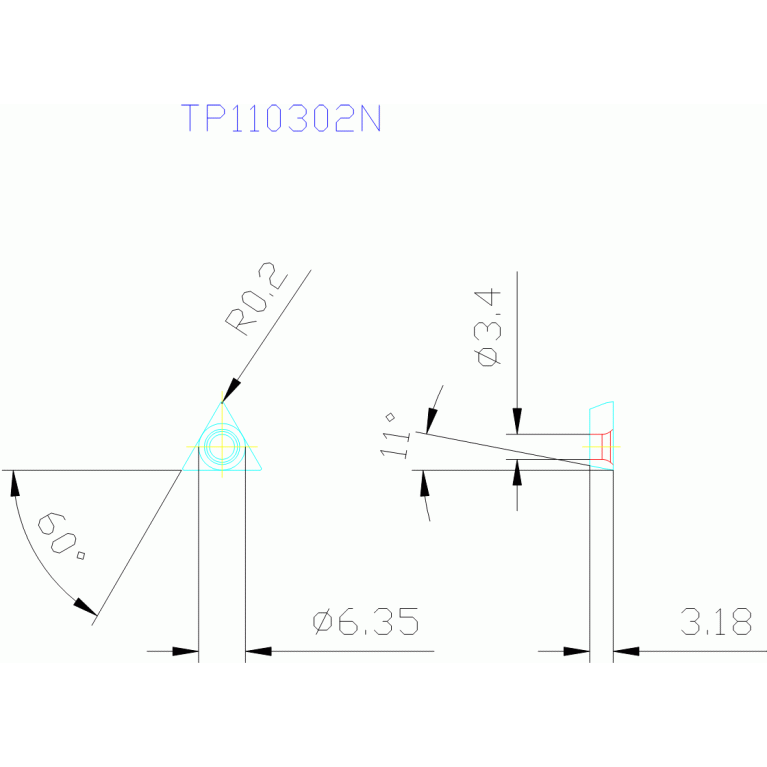

TPMH110302-FP MC6115
TPMH110302-FP MC6115
Артикул:
23603998
В наличии
Характеристики
AN Clearance angle major
11 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
FP
CECC Cutting edge condition code
E - Rounded
COATN Coating
Accumulated TiCN-Al2
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
3.4 mm
Delivery state valid from
4/14/2024
EPSR Insert included angle
60 Degree
FamilyProducts
Turning insert (Positive)
GRDMFG Grade manufacturers designation
MC6115
IC Inscribed circle diameter
6.35 mm
ID Technical product number
23603998
IFS Insert mounting style code
4 - Counter bore for screws with taper angle from 70° to 90°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$TP1103024NB$$02
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
11 mm
LOC-03 ISO
ISO$TP1103024NB$$02
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
TPMH110302-FP MC6115
NOI Insert index count
3
RE Corner radius
0.2 mm
S Insert thickness
3.18 mm
STDDESAnsi Standard designation ANSI
TPMH220.5FP
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
