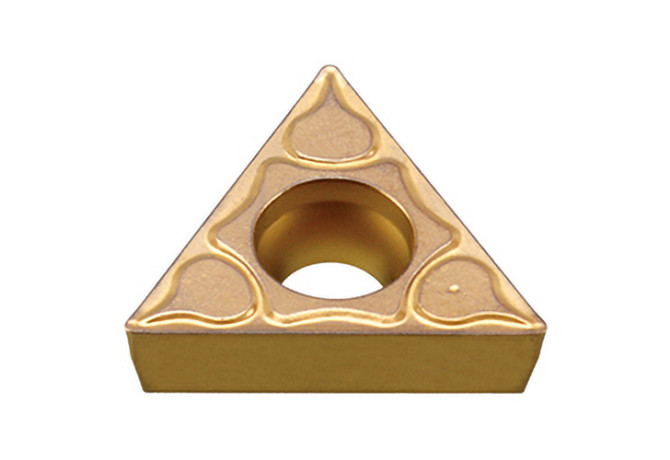

TCMT 16T308 PC TT8125B

Артикул: 6236488

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

7/1/2024

DIN

TC16T3083N

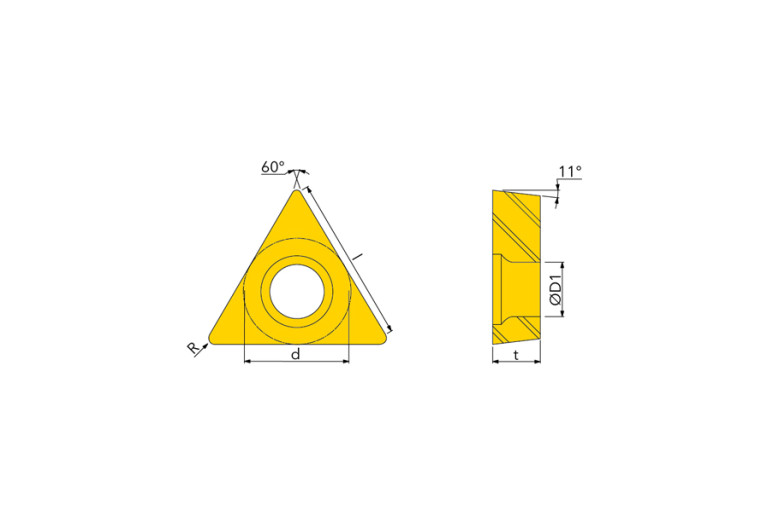

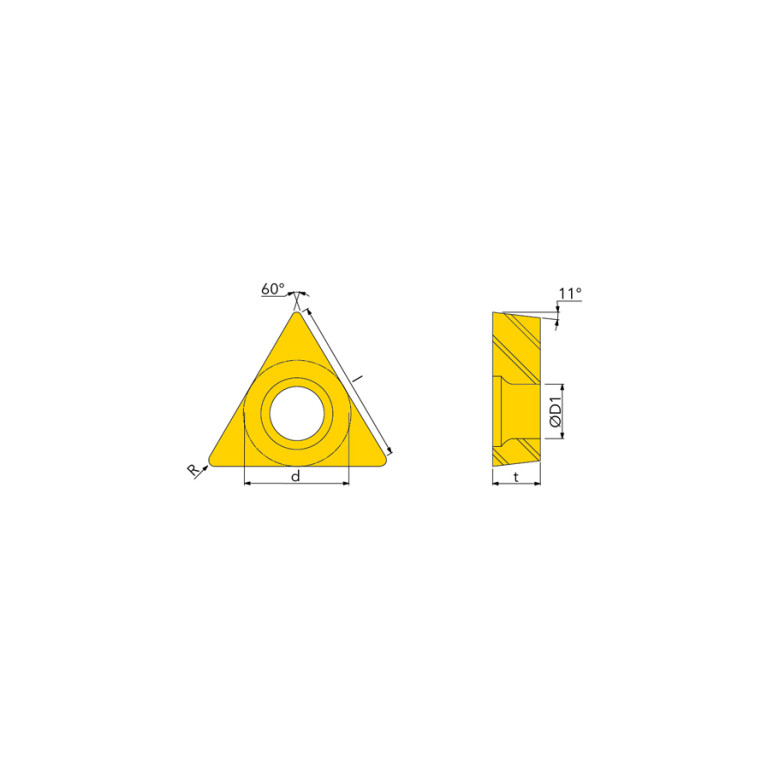

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 60° Insert - 7° clearance for medium roughing / steel

GRDMFG Grade manufacturers designation

TT8125B

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6236488

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

14.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083N

Materials

MIID Master insert identification

TCMT16T308 TT8125B

Name Identifying order number

TCMT 16T308 PC TT8125B

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T308

STDDESAnsi Standard designation ANSI

TCMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
