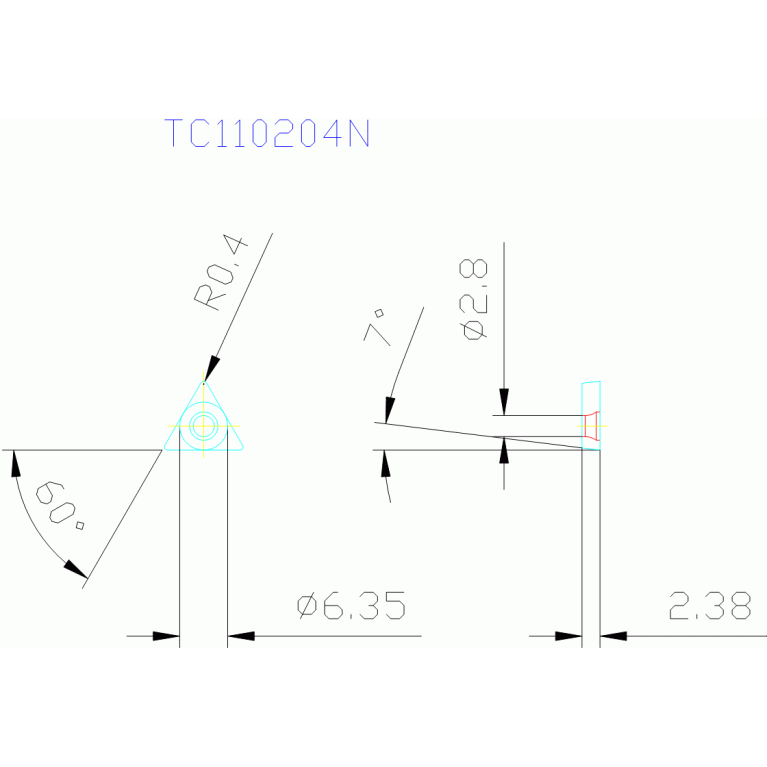

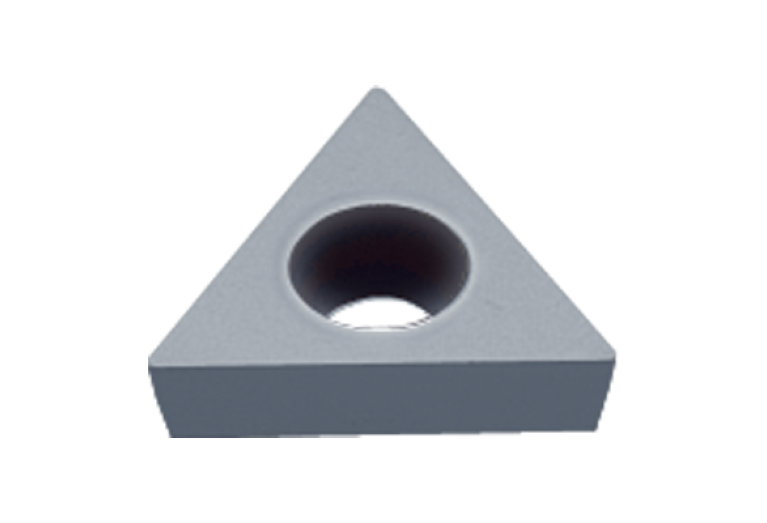

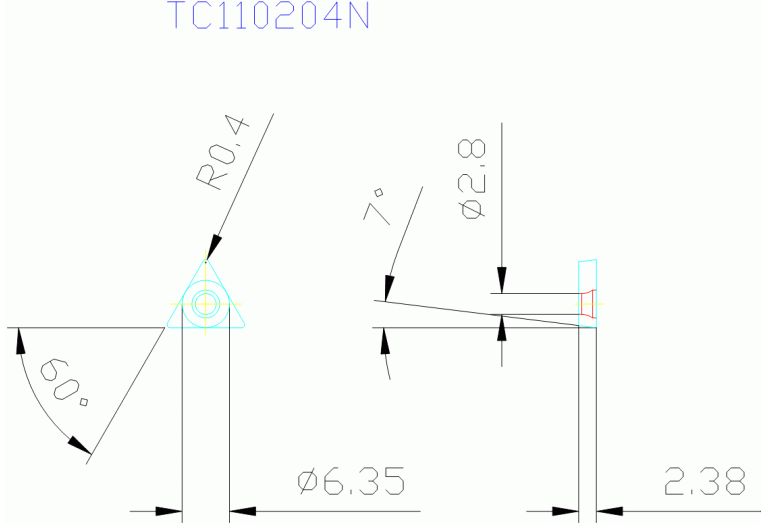

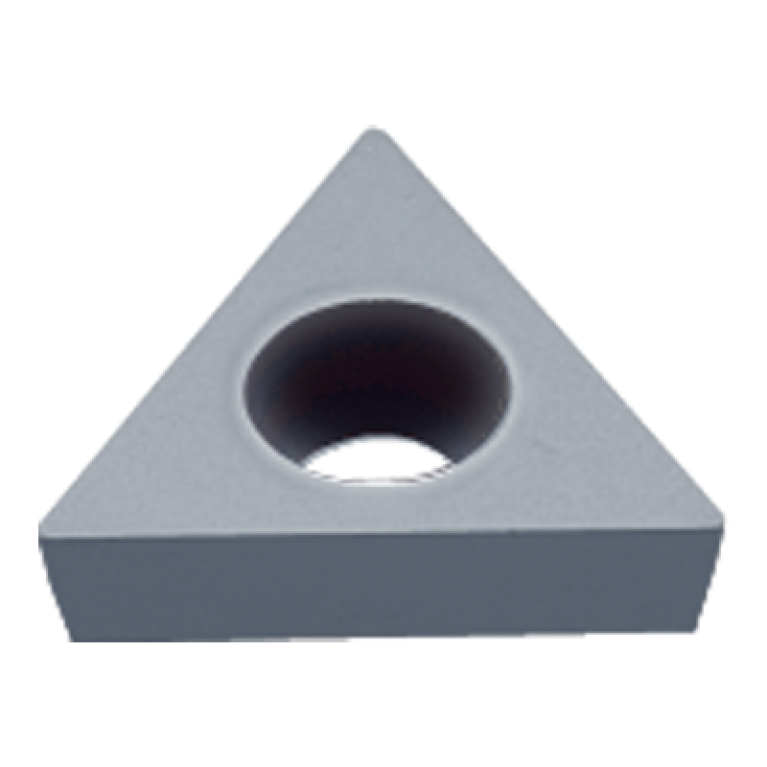

TCGW110204E NX2525

Артикул: 10520956

В наличии

В корзину

Описание

Характеристики

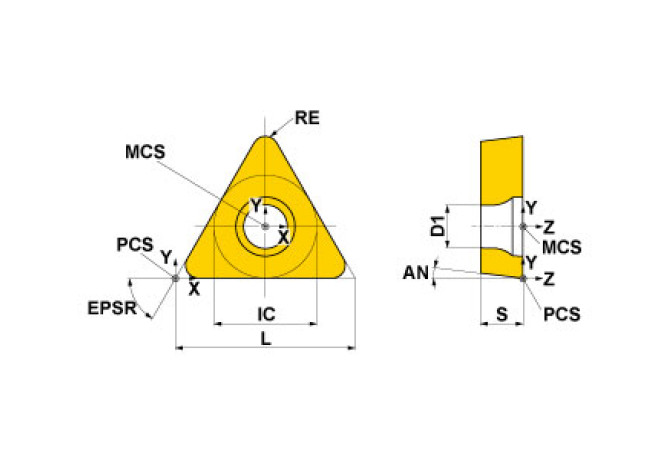

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

8/31/2015

EPSR Insert included angle

60 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

NX2525

IC Inscribed circle diameter

6.35 mm

ID Technical product number

10520956

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TC1102043NA$$04

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03 ISO

ISO$TC1102043NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

TCGW110204E NX2525

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

TCGW21.51E

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
