ZBMT13T304R-GF-15D PR1725
ZBMT13T304R-GF-15D PR1725
Артикул:
TLM40356
В наличии

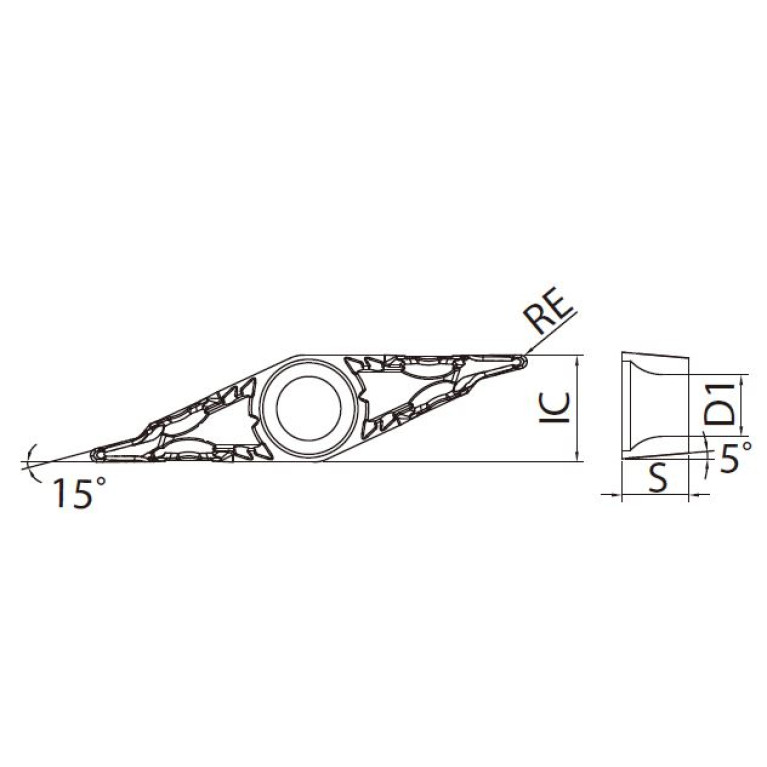

Характеристики
AN Clearance angle major
5 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
GF
COATN Coating
MEGACOAT NANO PLUS
COMPC Company code
KYO - Kyocera
CRCLMFG Chip removal class mfg
P10-P25
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.7 mm
Delivery state valid from
4/1/2021
DIN
KYO-ZB13T3043R
EPSR Insert included angle
25 Degree
FamilyProducts
ZBMT insert for Turning
GRD2ND Standard designation of the grade 2nd application
HC
GRDMFG Grade manufacturers designation
PR1725
IC Inscribed circle diameter
6.35 mm
ID Technical product number
TLM40356
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
15.025 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
KYO-ZB13T3043R
Materials
P,M
Name Identifying order number
ZBMT13T304R-GF-15D PR1725
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
4.12 mm
TCINS Tolerance class insert
M
Working process
No working processes available
