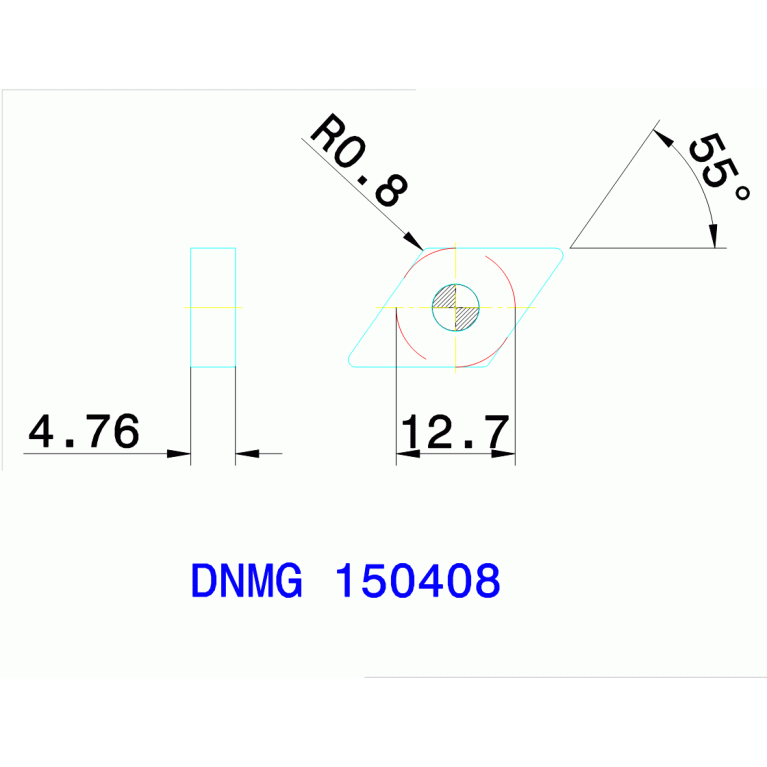

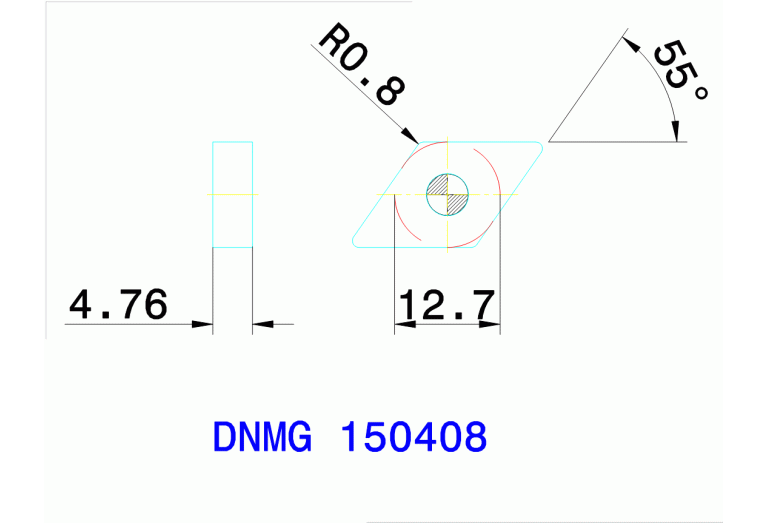

DNMG 150408 FLP TT8125B
DNMG 150408 FLP TT8125B
Артикул:
6237072
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
FLP
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
IL - Ingersoll
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
7/1/2024
DIN
DN1504082N
EPSR Insert included angle
55 Degree
FamilyProducts
Negative 55° rhombic inserts for finishing
GRDMFG Grade manufacturers designation
TT8125B
GRDPRIO Standard designation of the grade main application
P15-P30
IC Inscribed circle diameter
12.7 mm
ID Technical product number
6237072
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
15.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
DN1504082N
Materials
P
MIID Master insert identification
DNMG150408 TT8125B
Name Identifying order number
DNMG 150408 FLP TT8125B
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
DNMG150408
STDDESAnsi Standard designation ANSI
DNMG432
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
