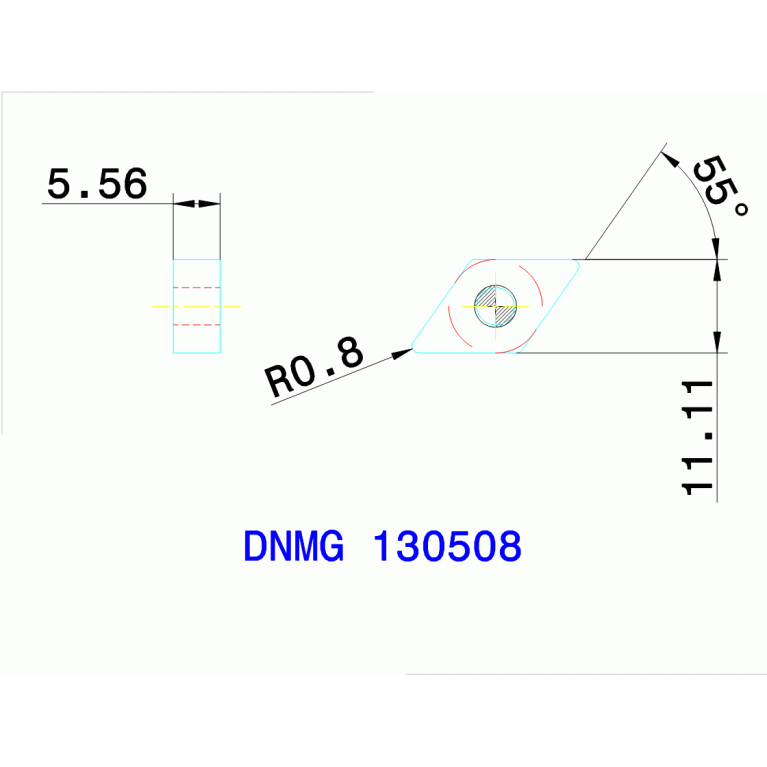

DNMG 130508 WA TT8125B

Артикул: 6236544

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

7/1/2024

DIN

DN1305082N

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negative 55° rhombic inserts finishing to medium application with wiper geometrie

GRDMFG Grade manufacturers designation

TT8125B

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

11.11 mm

ID Technical product number

6236544

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1305082N

Materials

Name Identifying order number

DNMG 130508 WA TT8125B

RE Corner radius

0.8 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

DNMG130508

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
