DCMT11T304-MP4 WEP10C
DCMT11T304-MP4 WEP10C
Артикул:
8646397
В наличии
Характеристики

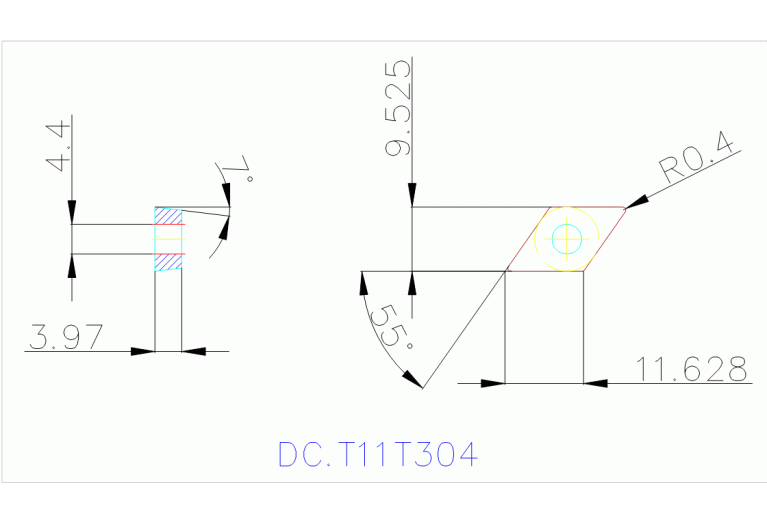

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
MP4
CECC Cutting edge condition code
E - Rounded
COATN Coating
Cermet+TiCN+TiAlN
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2024
DIN
DC11T3043N
EPSR Insert included angle
55 Degree
FamilyProducts
Turning Insert – Positive rhombic 55° DCMT
GAN Insert rake angle
7 Degree
GRDMFG Grade manufacturers designation
WEP10C
IC Inscribed circle diameter
9.525 mm
ID Technical product number
8646397
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$DC11T3043NB$$04
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
11.628 mm
LOC-03 ISO
ISO$DC11T3043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
DC11T3043N
Materials
P
MIID Master insert identification
DCMT11T304 WEP10C
Name Identifying order number
DCMT11T304-MP4 WEP10C
NameAnsi Identifying order number inch alternative
DCMT3(2.5)1-MP4 WEP10C
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
3.969 mm
S1 Insert thickness total
3.969 mm
STDDES Standard designation
DCMT11T304
STDDESAnsi Standard designation ANSI
DCMT32.51
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.003 kg
