DCMT070204-LM MC7015
DCMT070204-LM MC7015
Артикул:
23004481
В наличии

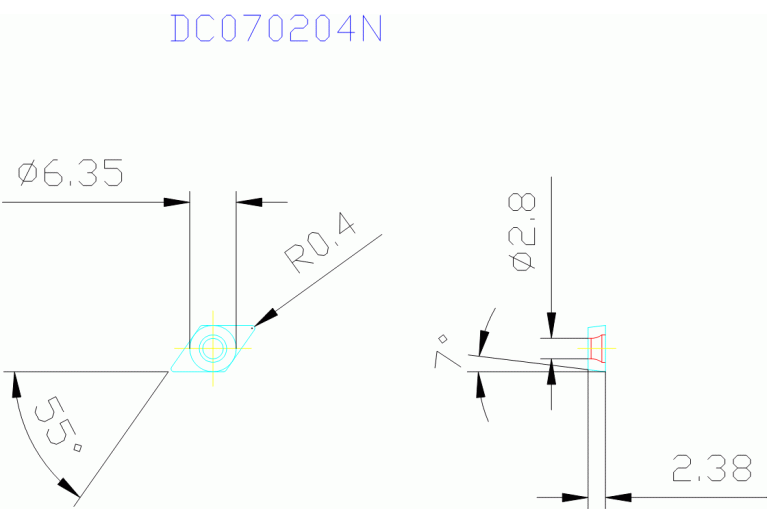

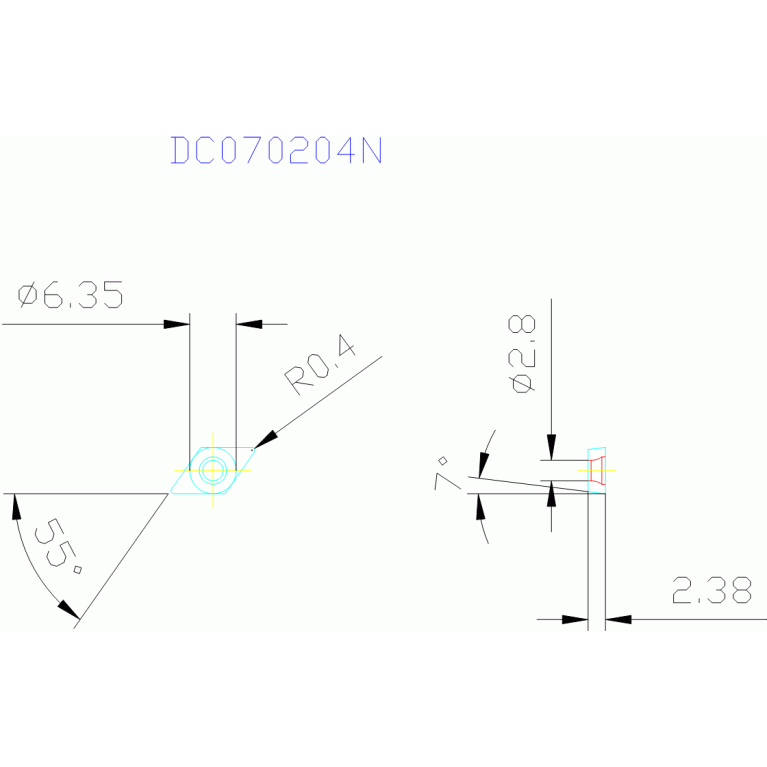

Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
LM
CECC Cutting edge condition code
E - Rounded
COATN Coating
TiCN-Al2O3-Ti
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
8/16/2023
EPSR Insert included angle
55 Degree
FamilyProducts
Turning insert (Positive)
GRDMFG Grade manufacturers designation
MC7015
IC Inscribed circle diameter
6.35 mm
ID Technical product number
23004481
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$DC0702043NB$$04
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
7.75 mm
LOC-03 ISO
ISO$DC0702043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
DCMT070204-LM MC7015
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
2.38 mm
STDDESAnsi Standard designation ANSI
DCMT21.51LM
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
