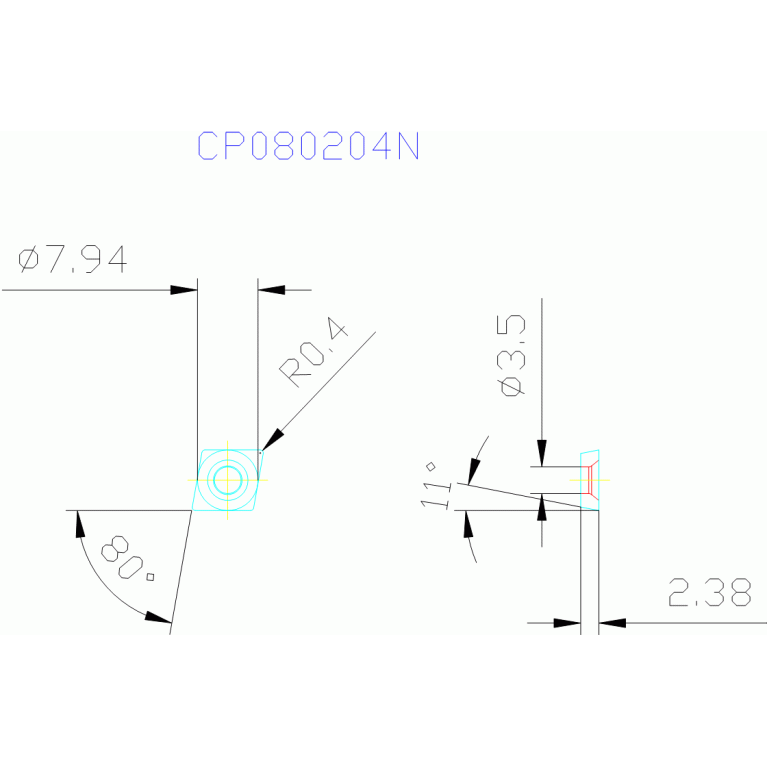

CPMB080204 HTi10

Артикул: 23180819

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

3/1/2024

EPSR Insert included angle

80 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

HTi10

IC Inscribed circle diameter

7.94 mm

ID Technical product number

23180819

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CP0802044NA$$04

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8.06 mm

LOC-03 ISO

ISO$CP0802044NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

CPMB080204 HTi10

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

CPMB2.51.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
