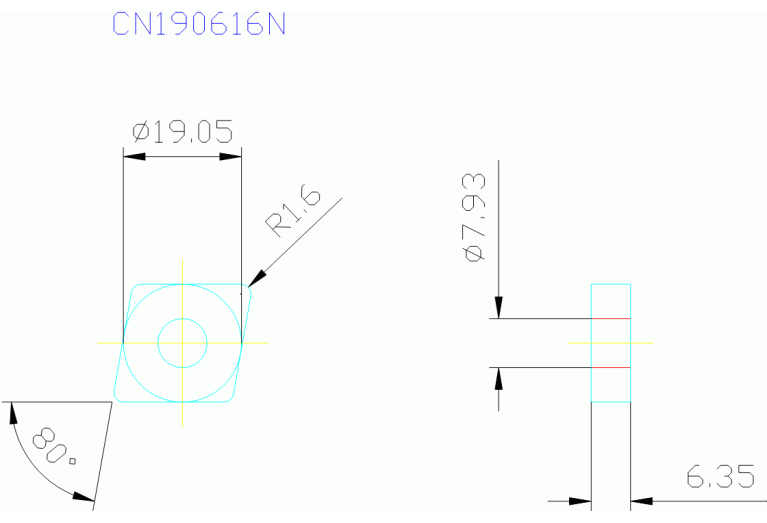

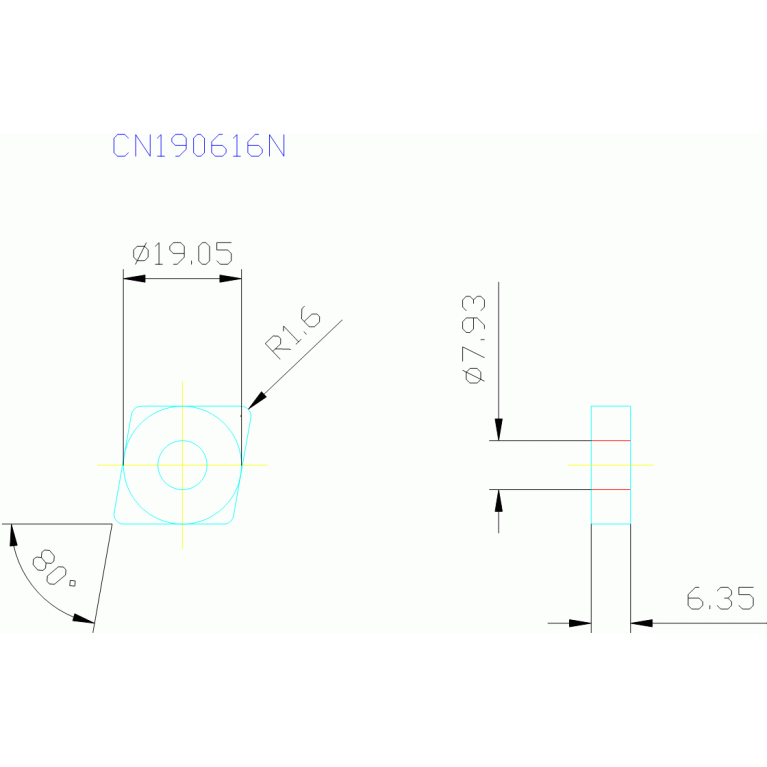

CNMM190616-HZ MC6115
CNMM190616-HZ MC6115
Артикул:
23608603
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
HZ
CECC Cutting edge condition code
E - Rounded
COATN Coating
Accumulated TiCN-Al2
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
7.93 mm
Delivery state valid from
4/14/2024
EPSR Insert included angle
80 Degree
FamilyProducts
Turning insert (Negative)
GRDMFG Grade manufacturers designation
MC6115
IC Inscribed circle diameter
19.05 mm
ID Technical product number
23608603
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$CN1906162NB$$16
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
19.34 mm
LOC-03 ISO
ISO$CN1906162NB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
CNMM190616-HZ MC6115
NOI Insert index count
2
RE Corner radius
1.6 mm
S Insert thickness
6.35 mm
STDDESAnsi Standard designation ANSI
CNMM644HZ
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
