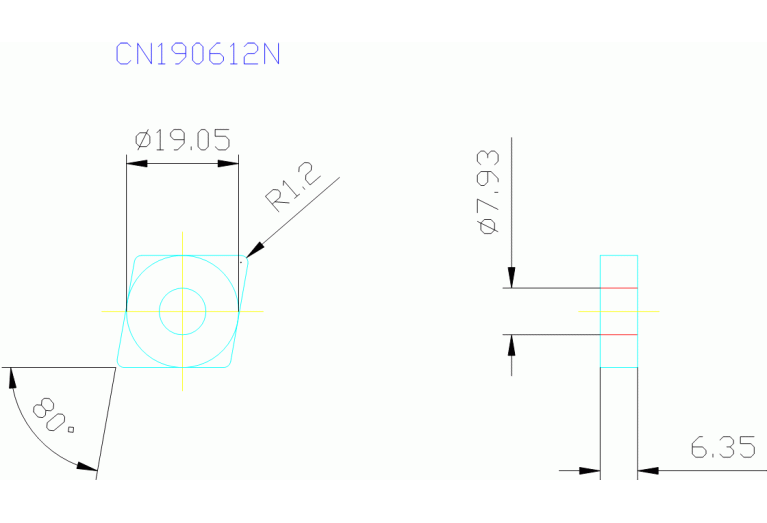

CNMG190612-GH MC5105
CNMG190612-GH MC5105
Артикул:
23563506
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
GH
CECC Cutting edge condition code
E - Rounded
COATN Coating
TiCN-Al2O3
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
7.93 mm
Delivery state valid from
4/14/2024
EPSR Insert included angle
80 Degree
FamilyProducts
Turning insert (Negative)
GRDMFG Grade manufacturers designation
MC5105
IC Inscribed circle diameter
19.05 mm
ID Technical product number
23563506
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$CN1906122NB$$12
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
19.34 mm
LOC-03 ISO
ISO$CN1906122NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
CNMG190612-GH MC5105
NOI Insert index count
4
RE Corner radius
1.2 mm
S Insert thickness
6.35 mm
STDDESAnsi Standard designation ANSI
CNMG643GH
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
