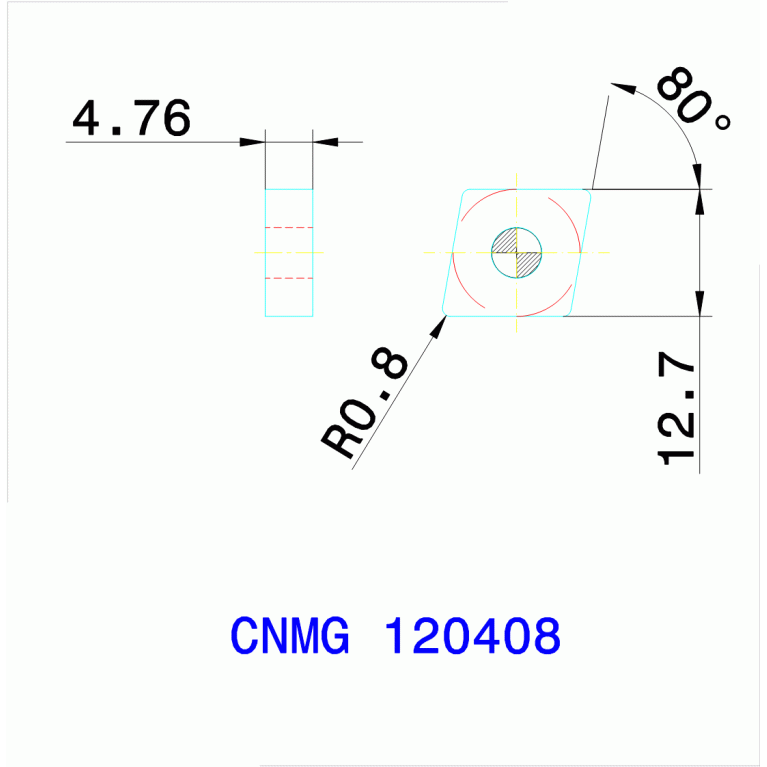

CNMG 120408 FG TT8105B
CNMG 120408 FG TT8105B
Артикул:
6213172
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
FG
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
IL - Ingersoll
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
7/1/2024
DIN
CN1204082N
EPSR Insert included angle
80 Degree
FamilyProducts
insert, Negative 80° rhombic insert for finishing
GRDMFG Grade manufacturers designation
TT8105B
GRDPRIO Standard designation of the grade main application
P01-P15
IC Inscribed circle diameter
12.7 mm
ID Technical product number
6213172
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
12.9 mm
LE Cutting edge effective length
12 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CN1204082N
Materials
P
MIID Master insert identification
CNMG120408 TT8105B
Name Identifying order number
CNMG 120408 FG TT8105B
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
CNMG120408
STDDESAnsi Standard designation ANSI
CNMG432
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
